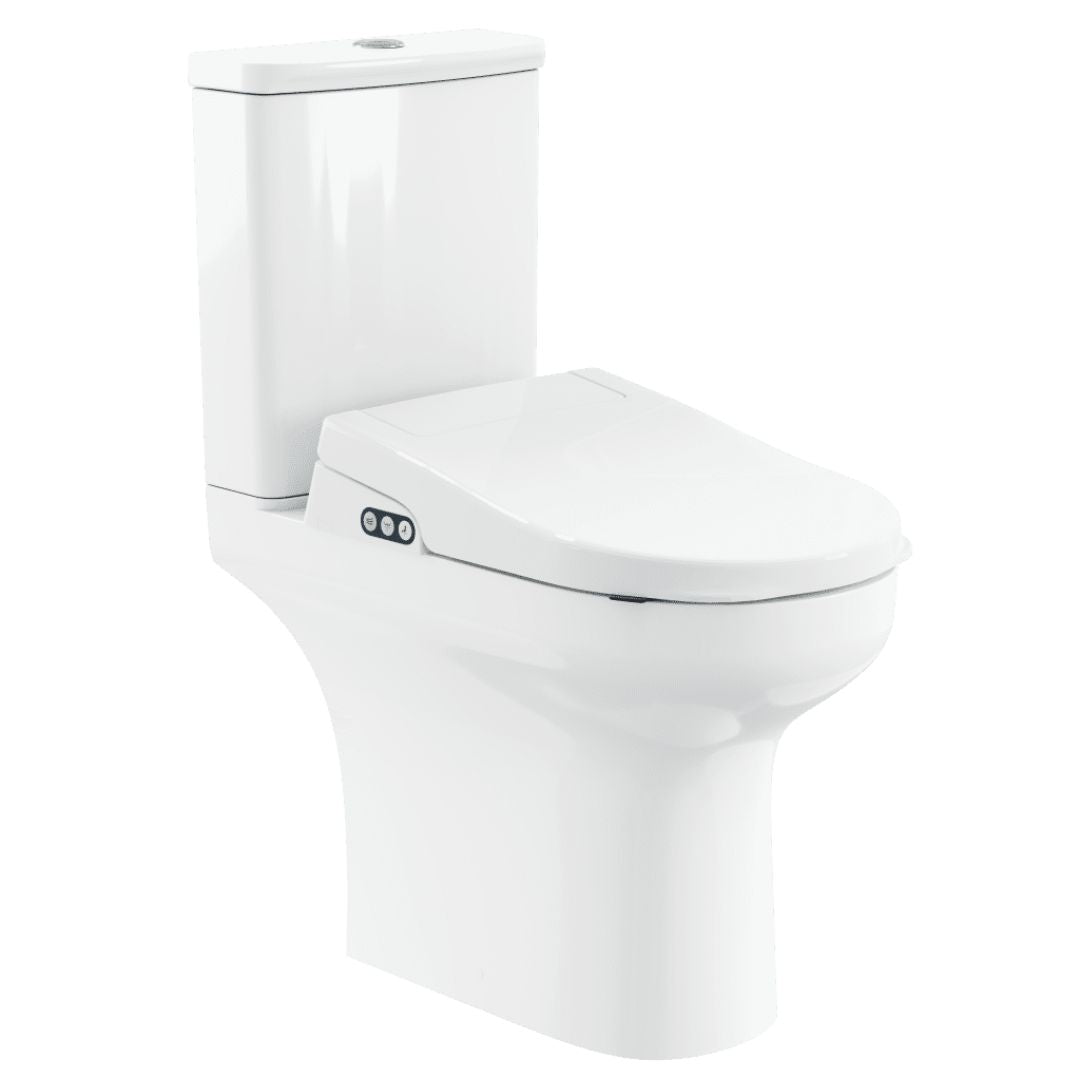

AKW Close-Coupled Bidet

A modern and discreet solution for wash/dry toileting, the Close-Coupled Bidet is comprised of three products which are supplied in one pack:

• an AKW Bottom-Entry Bidet with Consilio Seat & Lid
• a Navlin Raised-Height Close-Coupled Pan for Bottom-Entry Bidet, which conceals the bidet pipework

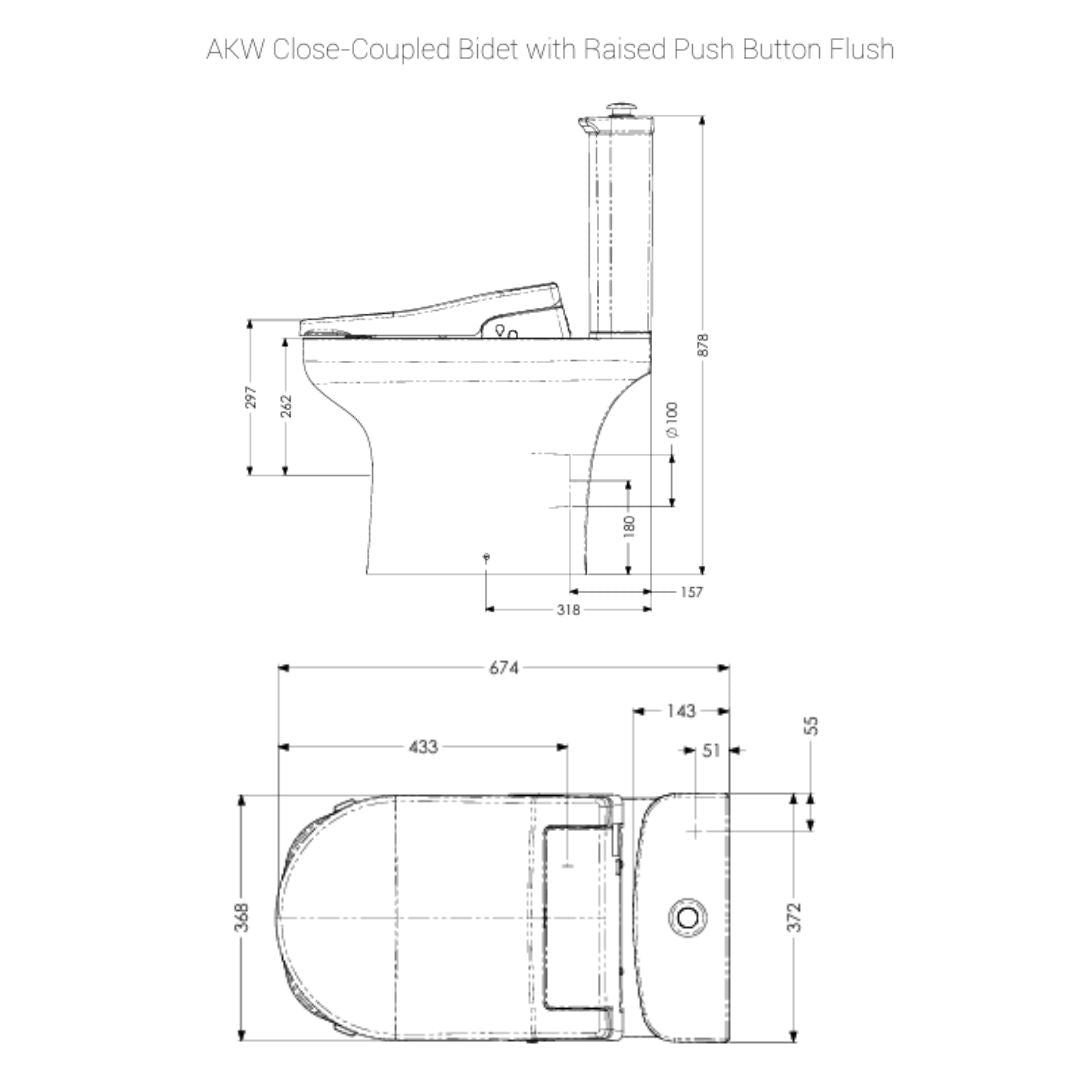

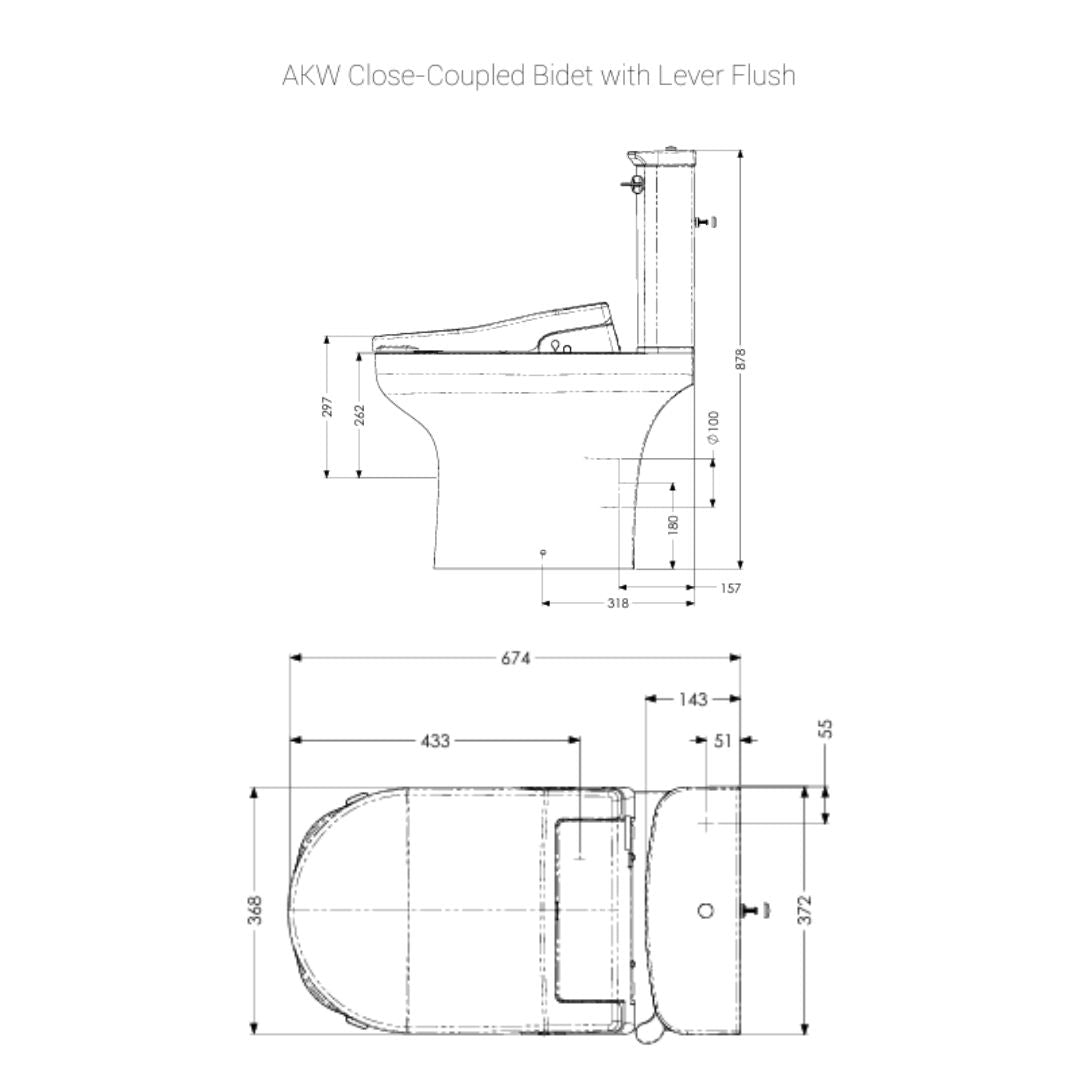

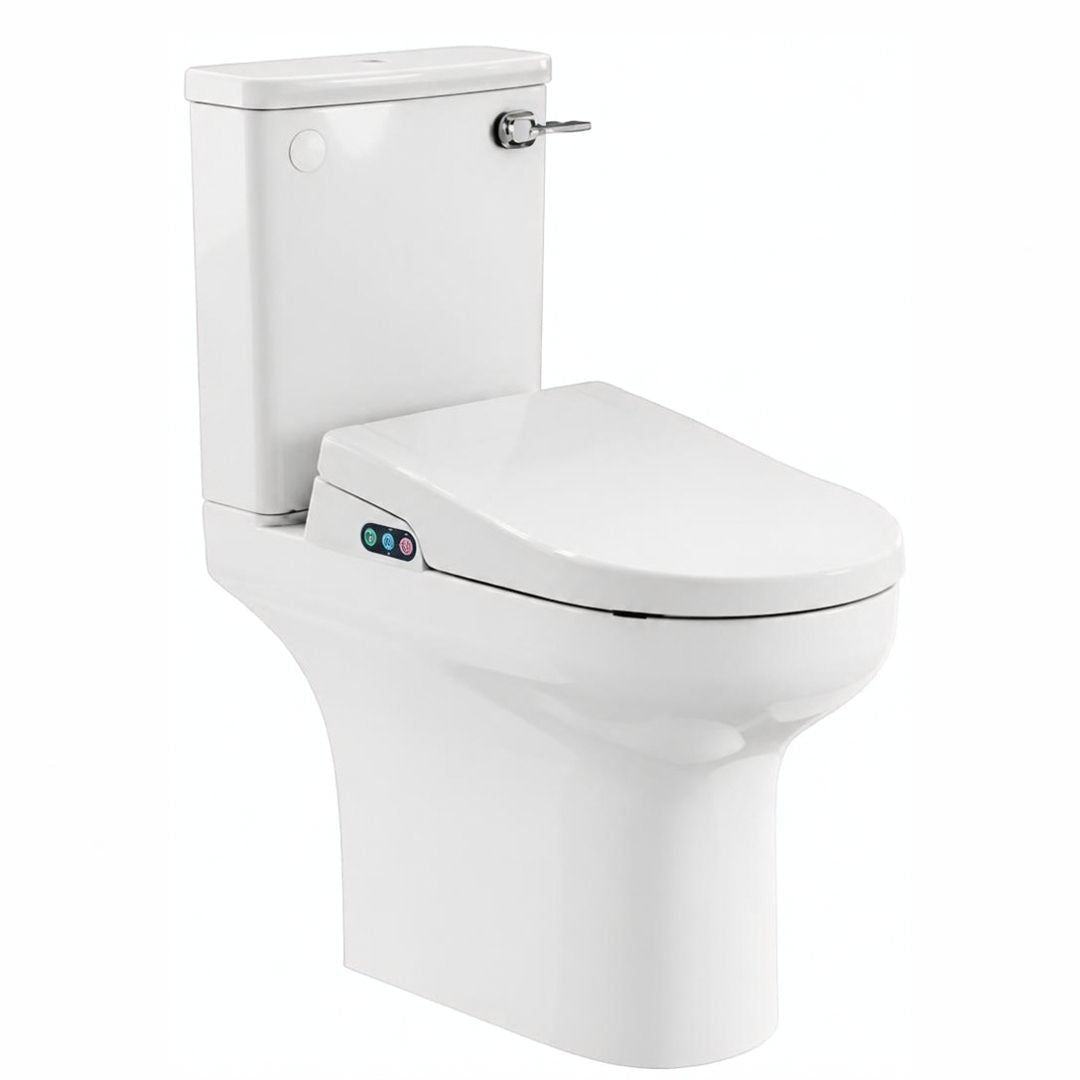

• a Navlin cistern: choose from a Raised Push Button Flush (28410P) or a Doc M Lever Flush (28410L)

The raised-height, rimless pan makes lowering and rising easier for less mobile users, while the concealed pipework gives a clean finish and removes trip hazards.

The bidet offers adjustable spray, water temperature and warm air drying, plus care-focused features such as a night light, seat sensor and handheld remote control. Installation by your plumber and/or electrician needs no specialist tools or prior training.

Tech Specs

Key Features

Toilet pan and cistern

• Raised-height pan: makes it easier for less mobile users to lower and rise.
• Concealed bidet pipework: rear holes in the pan hide the water feed for a neater finish and fewer trip hazards.
• Rimless pan with direct flush: reduces bacteria build-up and makes cleaning easier.
• Two-point, side-entry floor fixings: reduce dust and bacteria build-up and are easier to clean. White cosmetic caps prevent rusting.
• Rounded edges and corners: reduce the risk of injury in the event of a trip or fall.
• Strong pan load limit: the pan supports up to 60st (400kg).
• Choice of flush: a raised push button (28410P) or a spatula lever (28410L), both easy to operate by hand, closed fist or elbow.
• Full (6 litre) and reduced flush options: for performance and water efficiency.
• Fixing kits included: supplied with the relevant fixings as standard.
• Recyclable packaging: each component is individually packaged to prevent transit damage.

AKW Bidet

• Adjustable spray control: 5 rear wash and 5 feminine wash positions, 5 intensity settings and 4 spray modes.
• Instantaneous 1750W water heater: steady flow with no reheating gap between washes. Choose a 2-minute constant-temperature wash or a 1-minute gradual cooling wash.
• Powerful 350W warm air dryer: 6 temperature and 5 speed settings, with a 3-minute drying cycle.
• Handheld remote control: full function control that is easy to use and helps carers maximise user dignity.
• Self-cleaning nozzle: pre- and post-wash nozzle cleaning, plus an automatic water purge if unused for 72 hours.
• Night light: helps people with visual impairment or dementia find the toilet in the dark, reducing the risk of confusion.
• Quiet operation: low-noise heater, water pump and dryer motor, with pressure and flow optimised for efficient, continuous cleaning.
• Integral seat sensor: the bidet only activates when the seat is in use.
• Low pressure mode: keeps working at pressures as low as 0.2 bar (dynamic), with a maximum 25-second restart period.

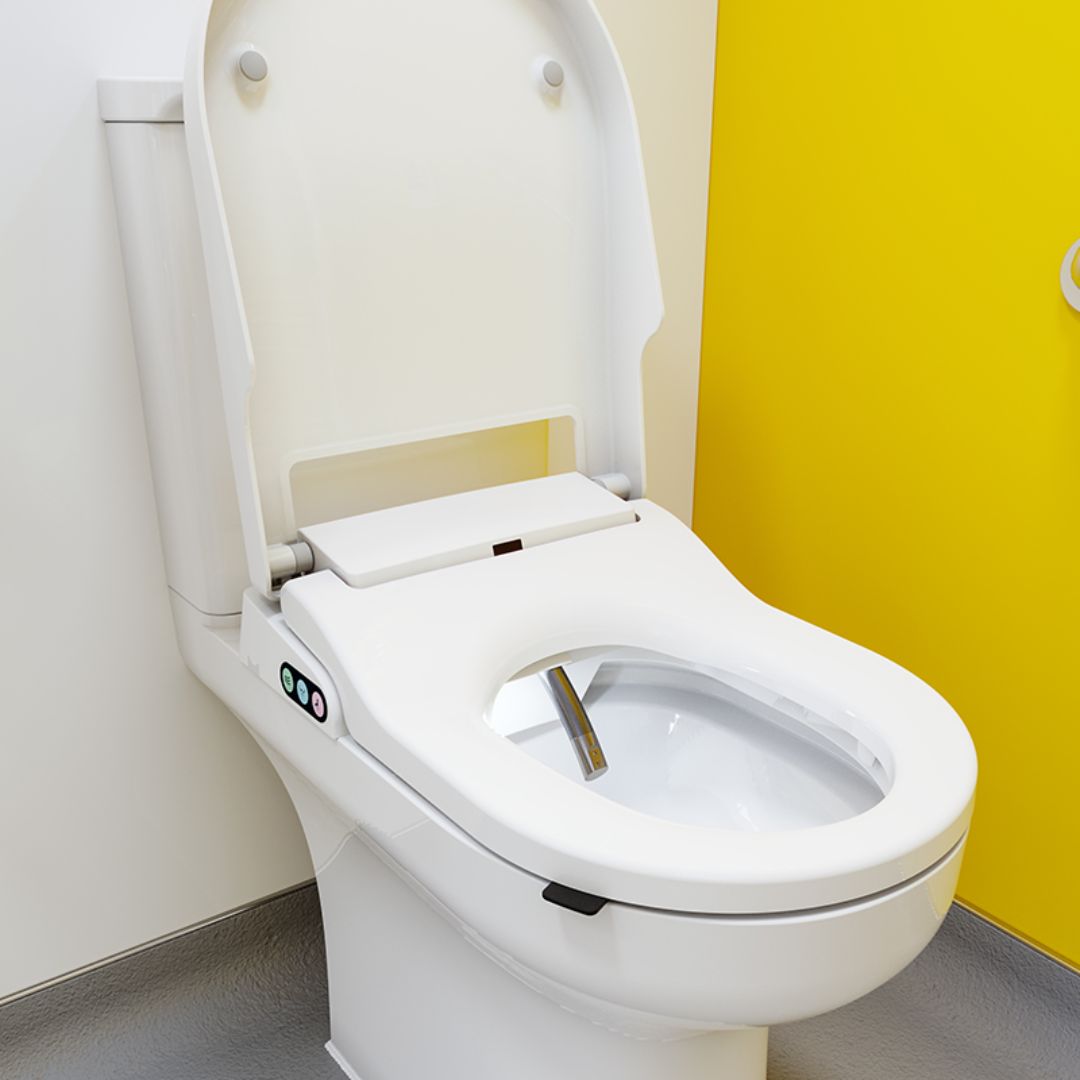

• Consilio seat with large aperture: well suited to care environments.
• Lid and seat lift assist: front moulded grips and contrasting side tabs make lifting easy, more hygienic and better for limited dexterity.
• Seat lugs: discreet stability when side transferring from a chair or commode.
• Quick-release, soft-close seat and lid: adaptable for different care needs, easier to clean, and slower, quieter and safer, especially for children.
• Strong load limit: 150kg (23.5st).
• Easy installation and low maintenance: quick for your plumber to fit, and designed to need very little maintenance.
