AKW Option E Half Height Shower Screens 750mm Care Screens

Highlights:

• Smooth modern latches and D handles
• 180 hinges enable doors to open both inwards and outwards
• Bi fold screens feature 360 hinges
• Suitable for Shower Trays Only!
• Unique locking rising butt two way hinges
• Elastomeric gaskets provide a high integrity, watertight seal
• Stronger and improved designed seals for a continuous water barrier
• Curtain rail drop rods are 600mm long where supplied
• All hinges and caps made from hardwearing Nylon 6
• Handles included
• Half height screens give easy carer access
• A stronger magnetic strip increases water retention
• Robust frames for a longer life
• Stronger fittings provide better wear and tear
• PET frosted panels gives shatterproof glazing for added safety
• Quality white curtains provided as standard
• L shaped curtain rail
• Easy to fit
• Can be installed with a variety of shower tray configurations

Product Overview

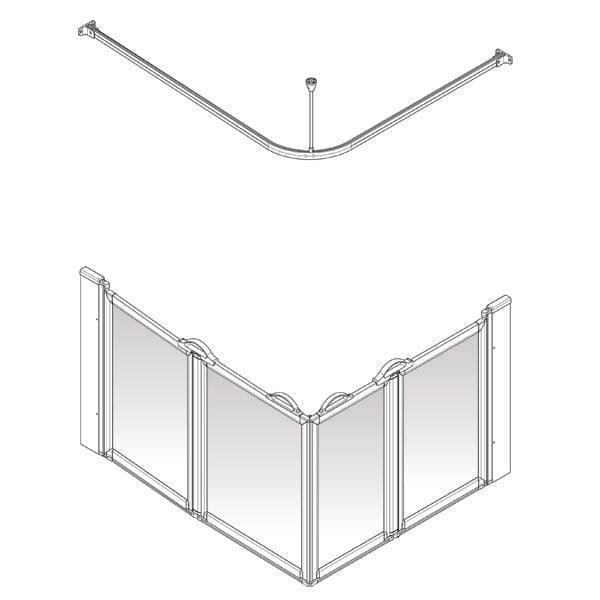

The AKW half-height shower screen has two panels that fit around two open sides of a corner shower tray, meeting at a junction point where the user enters. One panel runs along one open side, the other runs along the other open side.

How to Choose the Correct Screen

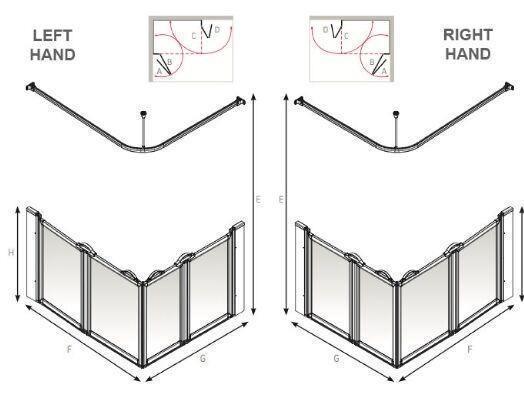

1. Pick Your Handedness:

Non-handed is used with square trays (e.g. 800×800, 900×900mm). Both panels are the same length, so the screen is perfectly symmetrical

Left-handed vs Right-handed applies to rectangular trays (e.g. 1200×700mm), where one panel is longer than the other. You determine whether you need a left-handed or right-handed screen based on which side the longer door panel is located, when standing at the opening door entry corner:

• Left-handed - the longer door panel is on your left as you face the shower
• Right-handed - the longer door panel is on your right as you face the shower

Important: Choosing the wrong handedness is the most common ordering mistake. Returns are chargeable, so please check carefully before ordering. If you are unsure, please call us on 0161 223 5050.

2. Choose your size:

Each option has 2 door panels. Measure your longest door first, then your shortest length. Then select those sizes from the size option boxes.

Note: Some screen sizes are made to order and could take 7-10 days to be despatched. Please message us first to confirm before placing your order. Made to measure screens are non returnable.

Quick Selection Checklist

Use this to avoid the most common ordering mistakes:

• Is your tray square? → Choose non‑handed
• Is your tray rectangular? → Determine left or right
• Have you measured the long door panel side first, then the short side?
• Does the screen width allow safe access for the user?
• Do you need a 750mm or 900mm screen height?
• Have you checked whether your size is made to order?

Need Help?

If you’re unsure about handedness or sizing, please contact us before ordering. We’re happy to guide you through the selection process.

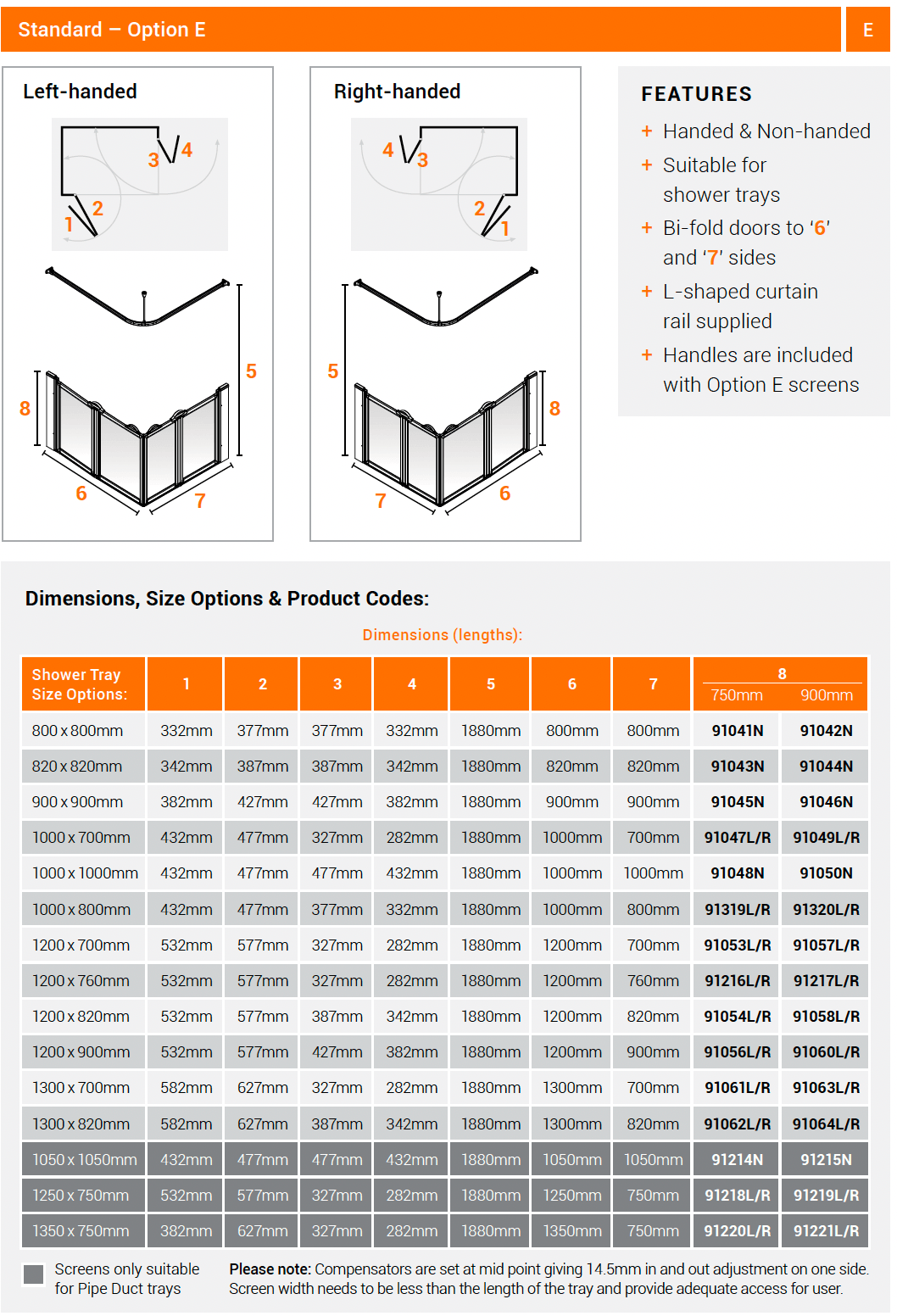

Full Dimension Breakdown
