AKW Option E5 Half Height Shower Screens 750mm Care Screens

A half height carer shower screen designed for assisted bathing, combining a tri-fold door on one side with a bi-fold door on the other — both opening inwards and outwards for maximum flexibility.

The reduced 750mm height of the screen allows carers easy access to the user while still containing water effectively, thanks to a stronger magnetic strip and improved elastomeric gaskets that provide a continuous, watertight seal.

Built on a robust frame with hardwearing Nylon 6 hinges and caps, the E5 features 180° hinges on the doors and unique locking rising-butt two-way hinges on the bi-fold sections for smooth, durable operation over years of use.

Shatterproof PET frosted panels provide privacy and added safety, while a quality white curtain on an L-shaped rail with a 600mm drop rod completes the water barrier. Smooth modern latches and D handles are included as standard, and the screen is designed for straightforward installation with a variety of shower tray configurations.

This is the Option E5 shower tray version (not the wetroom EW5 variant) — designed for use with shower trays rather than tanked wetroom floors. Available in left-handed and right-handed configurations across six size options.

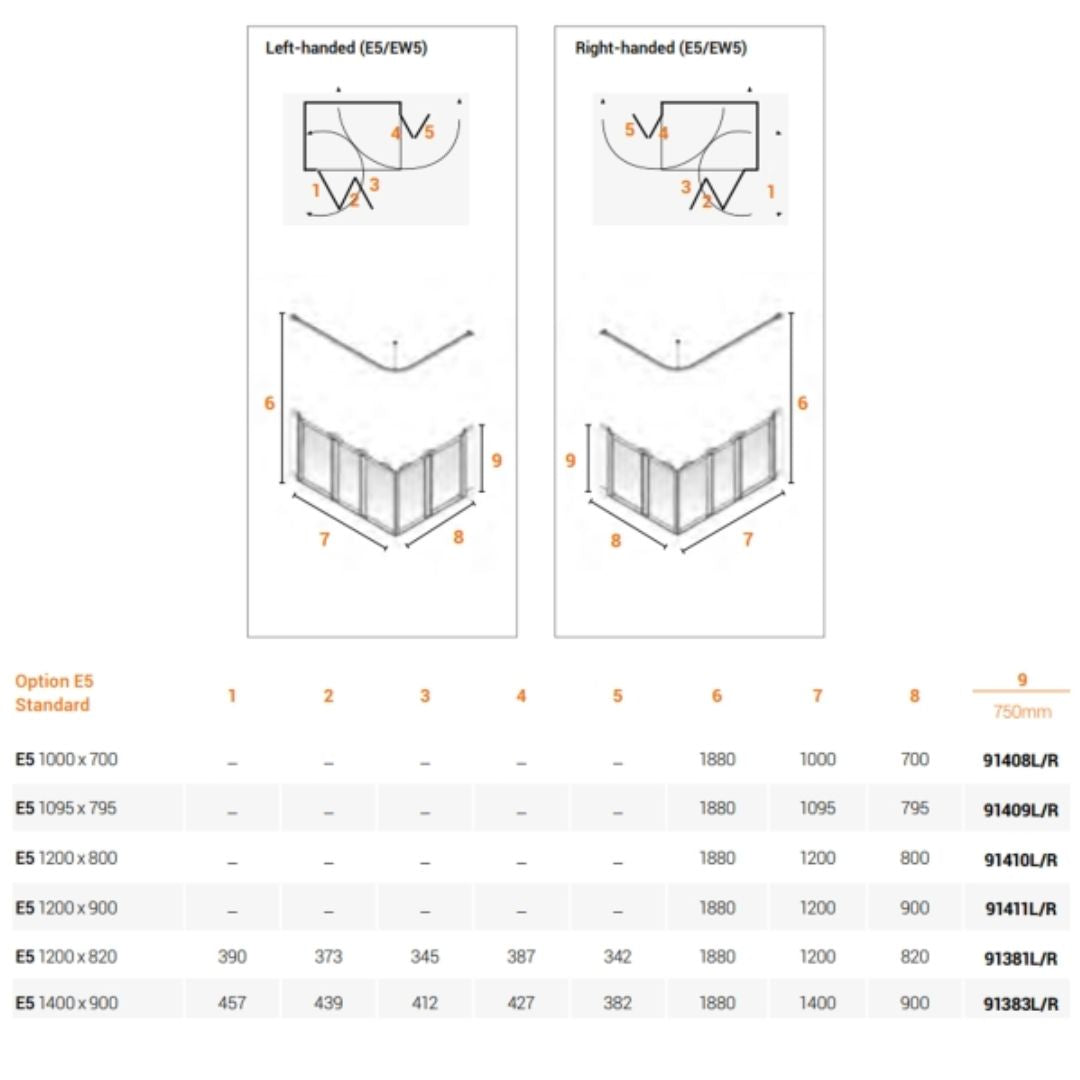

Tech Specs

Note: The 91409L/R (1095 x 795) size is compatible with Swift shower trays only.

Key Features

• Half height design gives easy carer access while showering
• Tri-fold door to one side, bi-fold door to the other — both open inwards and outwards
• Smooth modern latches and D handles included as standard
• 180° hinges on doors; 360° hinges on bi-fold sections
• Unique locking rising butt two-way hinges for secure, smooth operation
• Elastomeric gaskets and improved seal design provide a high-integrity, continuous watertight barrier
• Stronger magnetic strip increases water retention
• Robust frame and stronger fittings for a longer service life
• Shatterproof PET frosted panels for added safety and privacy
• Quality white curtain supplied as standard, on an L-shaped rail
• 600mm curtain rail drop rod
• Standard 1800mm x 2000mm shower curtain
• Compatible with a variety of shower tray configurations
• Easy to fit
• For use with shower trays — not suitable for wetroom installations (see EW5 range for wetrooms)

How to Choose the Correct Screen

1. Pick Your Handedness:

Left-handed vs Right-handed applies to rectangular trays (e.g. 1300×820mm), where one panel is longer than the other. You determine whether you need a left-handed or right-handed screen based on which side the longer door panel is located, when standing at the opening door entry corner:

• Left-handed - the longer door panel is on your left as you face the shower
• Right-handed - the longer door panel is on your right as you face the shower

Important: Choosing the wrong handedness is the most common ordering mistake. Returns are chargeable, so please check carefully before ordering. If you are unsure, please call us on 0161 223 5050.

2. Choose your size:

Each option has 2 door panels. Measure your longest door first, then your shortest length. Then select those sizes from the size option boxes.
