AKW Option EW5 Half Height Shower Screens 750mm Care Screens

A half height carer shower screen designed for assisted bathing, combining a tri-fold door on one side with a bi-fold door on the other — both opening inwards and outwards for maximum flexibility during carer-assisted showering.

The reduced height of the screen allows carers easy access to the user while still containing water effectively, thanks to a stronger magnetic strip and improved elastomeric gaskets that provide a continuous, watertight seal.

Built on a robust frame with hardwearing Nylon 6 hinges and caps, the EW5 features 180° hinges on the doors and unique locking rising-butt two-way hinges on the bi-fold sections for smooth, durable operation over years of use.

Shatterproof PET frosted panels provide privacy and added safety, while a quality white curtain on an L-shaped rail with a 600mm drop rod completes the water barrier. Smooth modern latches and D handles are included as standard.

This is the Option EW5 wetroom variant — designed for use with tanked wetroom floors (For shower trays see Option E5). Available in left-handed and right-handed configurations across six size options.

Tech Specs

Key Features

• Half height design gives easy carer access while showering
• Tri-fold door to one side, bi-fold door to the other — both open inwards and outwards
• Smooth modern latches and D handles included as standard
• 180° hinges on doors; 360° hinges on bi-fold sections
• Unique locking rising butt two-way hinges for secure, smooth operation
• Elastomeric gaskets and improved seal design provide a high-integrity, continuous watertight barrier
• Stronger magnetic strip increases water retention
• Robust frame and stronger fittings for a longer service life
• Shatterproof PET frosted panels for added safety and privacy
• Quality white curtain supplied as standard, on an L-shaped rail
• 600mm curtain rail drop rod
• Standard 1800mm x 2000mm shower curtain
• Supplied with special corner blocks to be trimmed to accommodate any radius to coved slip resistant flooring
• For use in wetroom installations (see E5 range for shower trays)

How to Choose the Correct Screen

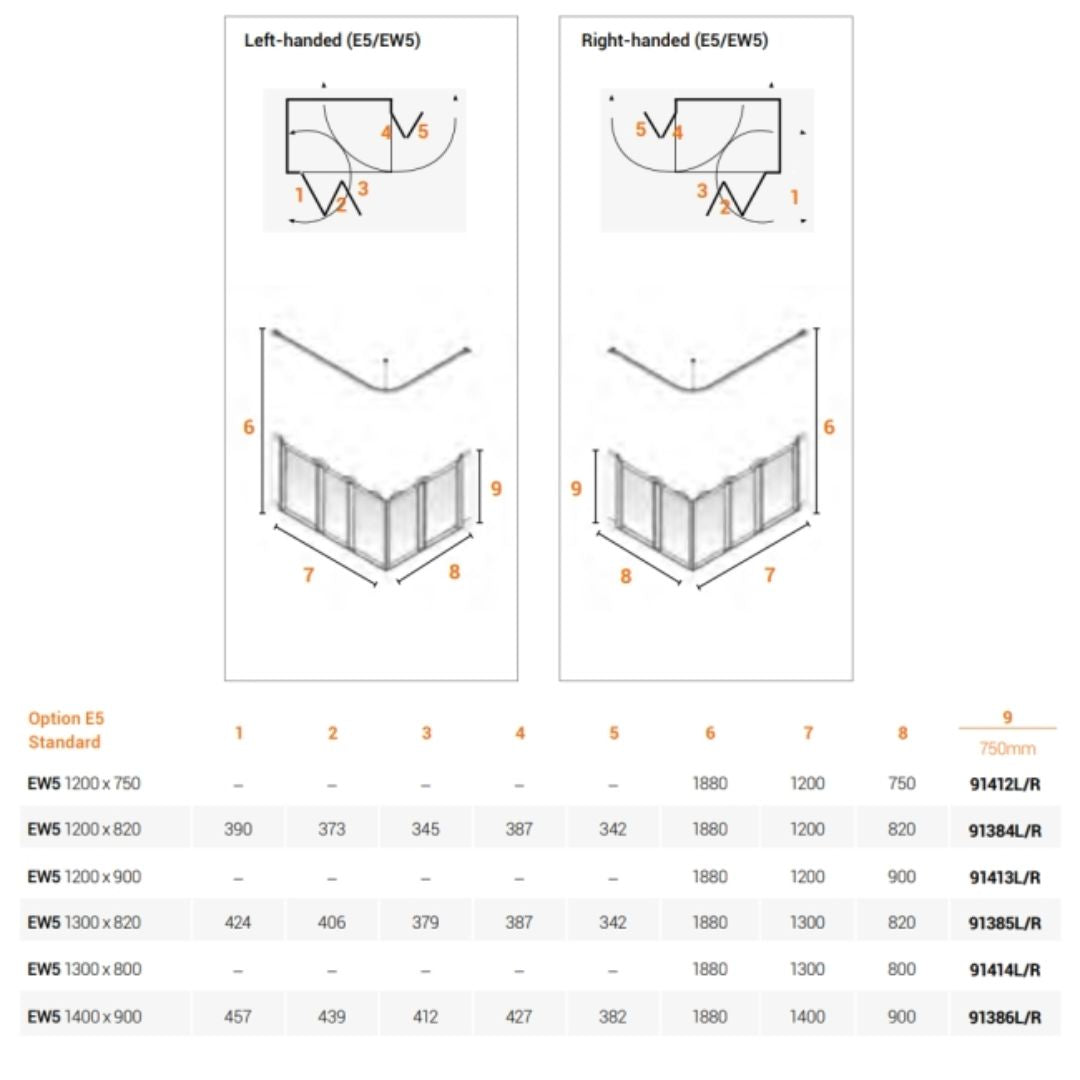

1. Pick Your Handedness:

Left-handed vs Right-handed applies to rectangular trays (e.g. 1300×820mm), where one panel is longer than the other. You determine whether you need a left-handed or right-handed screen based on which side the longer door panel is located, when standing at the opening door entry corner:

• Left-handed - the longer door panel is on your left as you face the shower
• Right-handed - the longer door panel is on your right as you face the shower

Important: Choosing the wrong handedness is the most common ordering mistake. Returns are chargeable, so please check carefully before ordering. If you are unsure, please call us on 0161 223 5050.

2. Choose your size:

Each option has 2 door panels. Measure your longest door first, then your shortest length. Then select those sizes from the size option boxes.
