AKW Option XF Full Height Shower Screens

A carer-assisted shower screen for use with shower trays, combining a full-height hinged door panel with bi-folding lower 900mm side panels that wrap around the bath for complete splash protection.

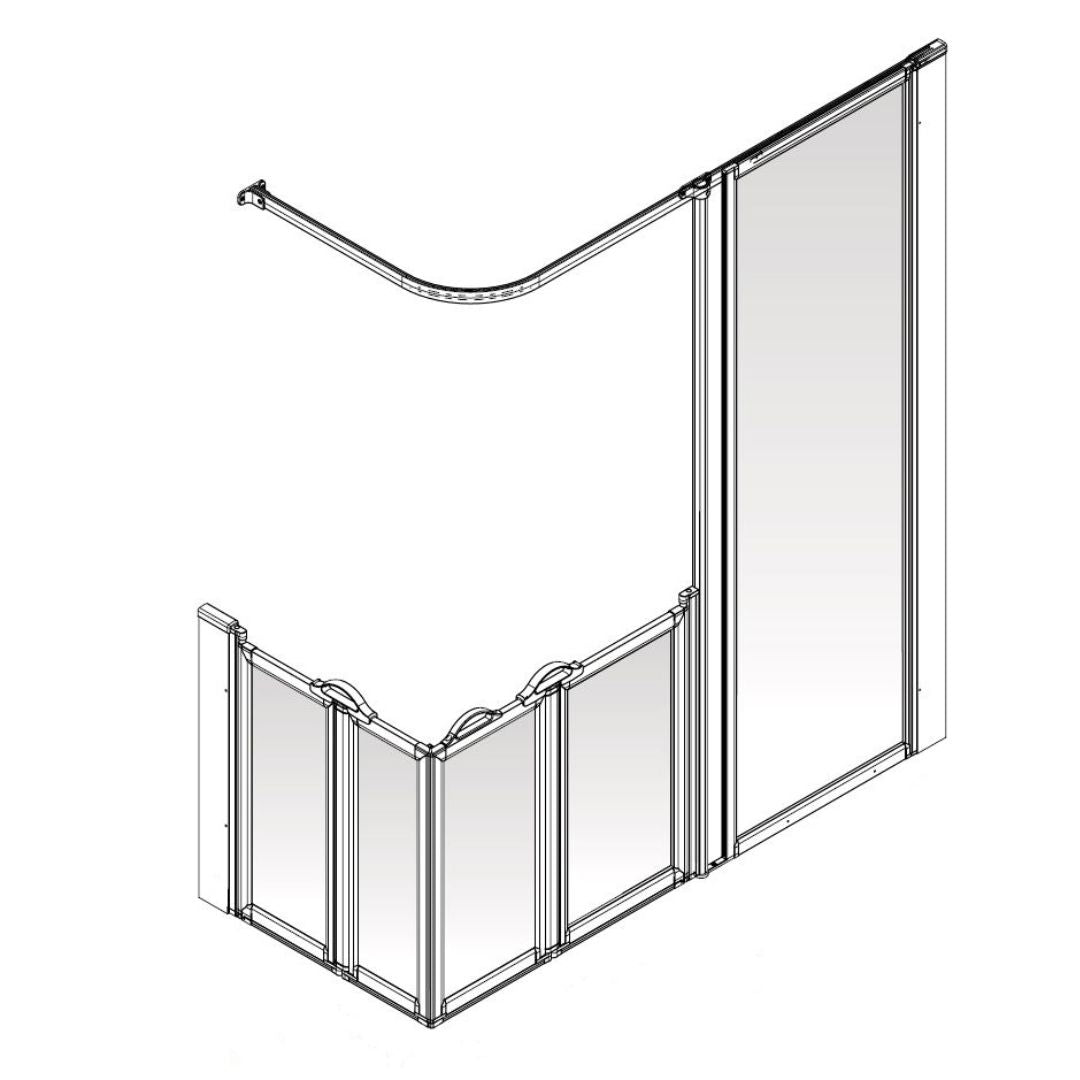

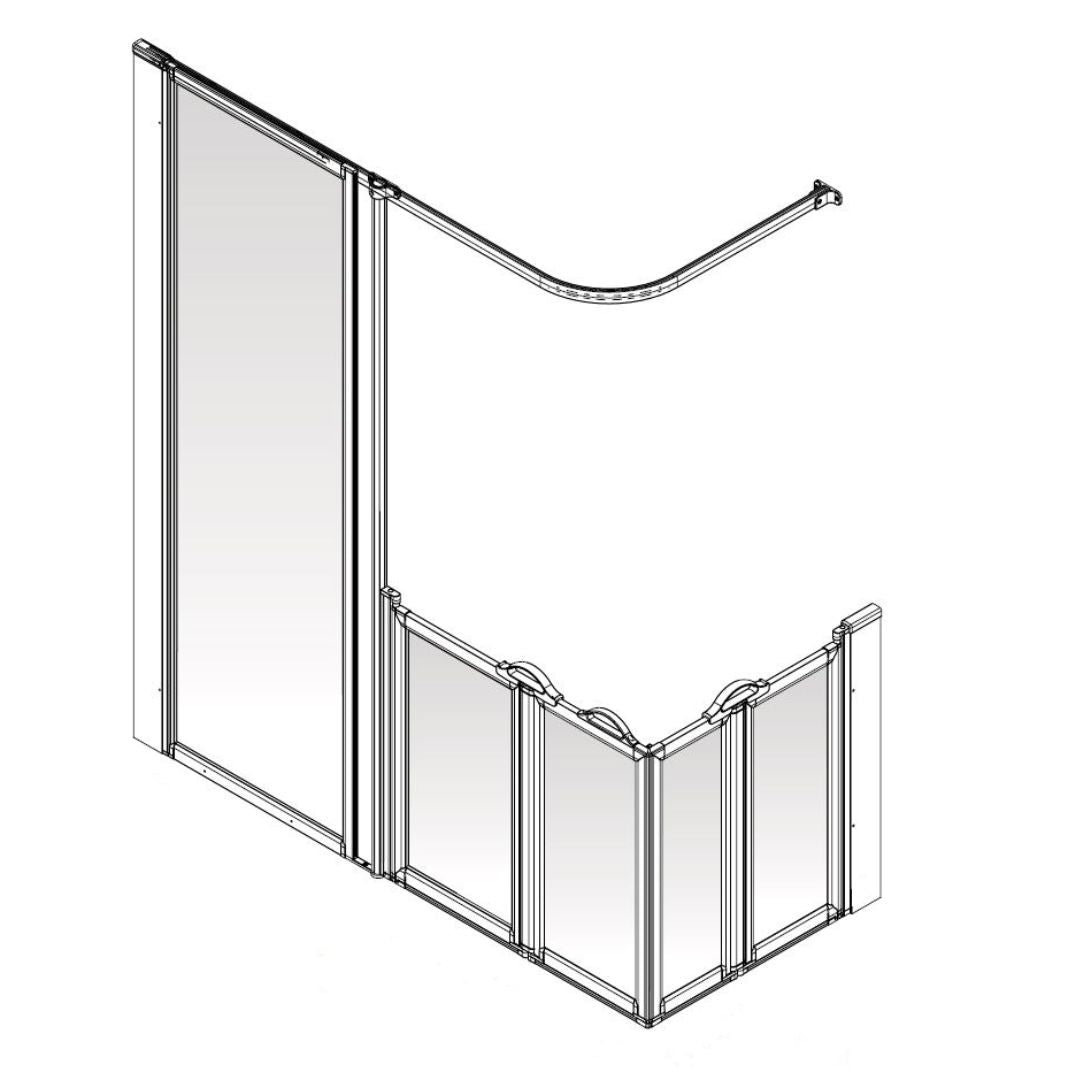

The screen has a fixed side panel on run '7' and bi-folding doors on runs '7' and '8', opening both in and out via rising butt two-way hinges — no awkward levers required — with 180° opening on the single door and 360° opening on the bi-fold sections.

Frosted, shatterproof PET glazed panels sit in a robust high-grade aluminium frame, with a magnetic strip, profiled floor seals and elastomeric gaskets keeping water contained, plus a trimmable L-shaped curtain rail and 1800mm wide x 2000mm drop weighted curtain supplied as standard.

14.5mm compensator adjustment on each side helps the panel fit uneven walls. Available in two widths and in left- or right-handed configurations to suit either end of the bath.

Note: These are Made to Measure shower screens so allow additional delivery time (7-10 days estimated)

Tech Specs

Key Features

• Simply operated unique rising butt two-way hinges ensure doors are easier to operate without using awkward levers
• 14.5mm either side adjustment on compensators assists with fixing onto uneven walls
• All hinges and caps are made from hardwearing nylon 6, ensuring longer product life
• Easy glide curtain rail and white permeable weighted curtains provided as standard, offering the user privacy during showering
• L-shaped curtain rail supplied and can be trimmed on site for a precise fit
• Standard 1800mm wide x 2000mm drop shower curtains supplied
• Robust frames engineered from high grade aluminium, designed with quality and durability in mind
• 180° hinges on single doors and 360° hinges on bi-folding doors enable the doors to open both inwards and outwards, providing easy access for the user in smaller bathrooms
• A strong magnetic strip and profiled floor seals ensure excellent water retention
• Lightweight frosted shatterproof PET glazed panels offer safety and allow for light and privacy
• Handles and latch included as standard
• Smooth modern latches and D handles are ergonomically designed to improve the user experience and keep the bi-fold door in position when in use
• High quality elastomeric gaskets provide a high integrity, watertight seal

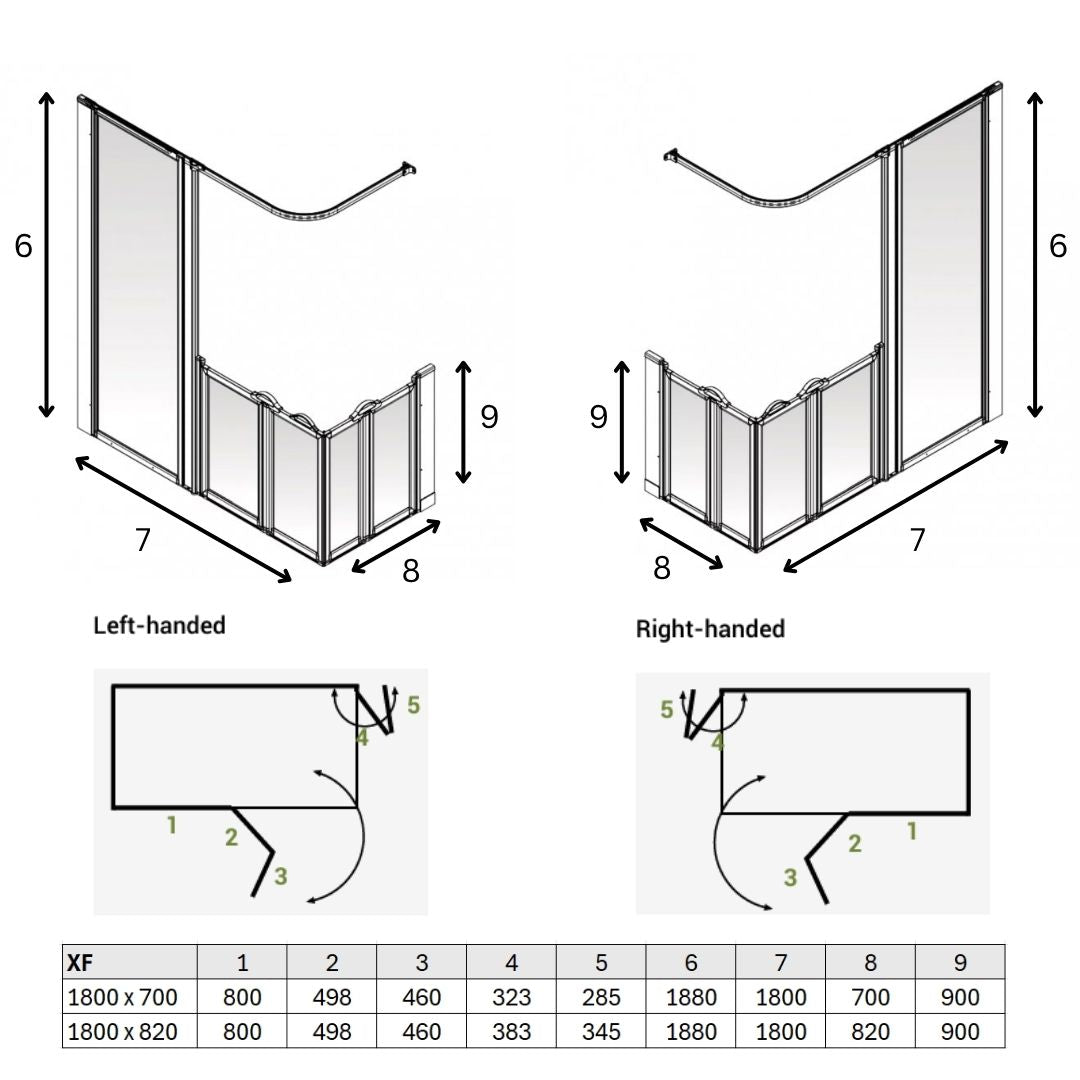

How to Choose the Correct Screen

1. Pick Your Handedness:

Left-handed vs Right-handed applies to rectangular trays (e.g. 1200×700mm), where one panel is longer than the other. You determine whether you need a left-handed or right-handed screen based on which side the longer door panel is located, when standing at the opening door entry corner:

• Left-handed - the longer door panel is on your left as you face the shower
• Right-handed - the longer door panel is on your right as you face the shower

Important: Choosing the wrong handedness is the most common ordering mistake. Returns are chargeable, so please check carefully before ordering. If you are unsure, please call us on 0161 223 5050.
