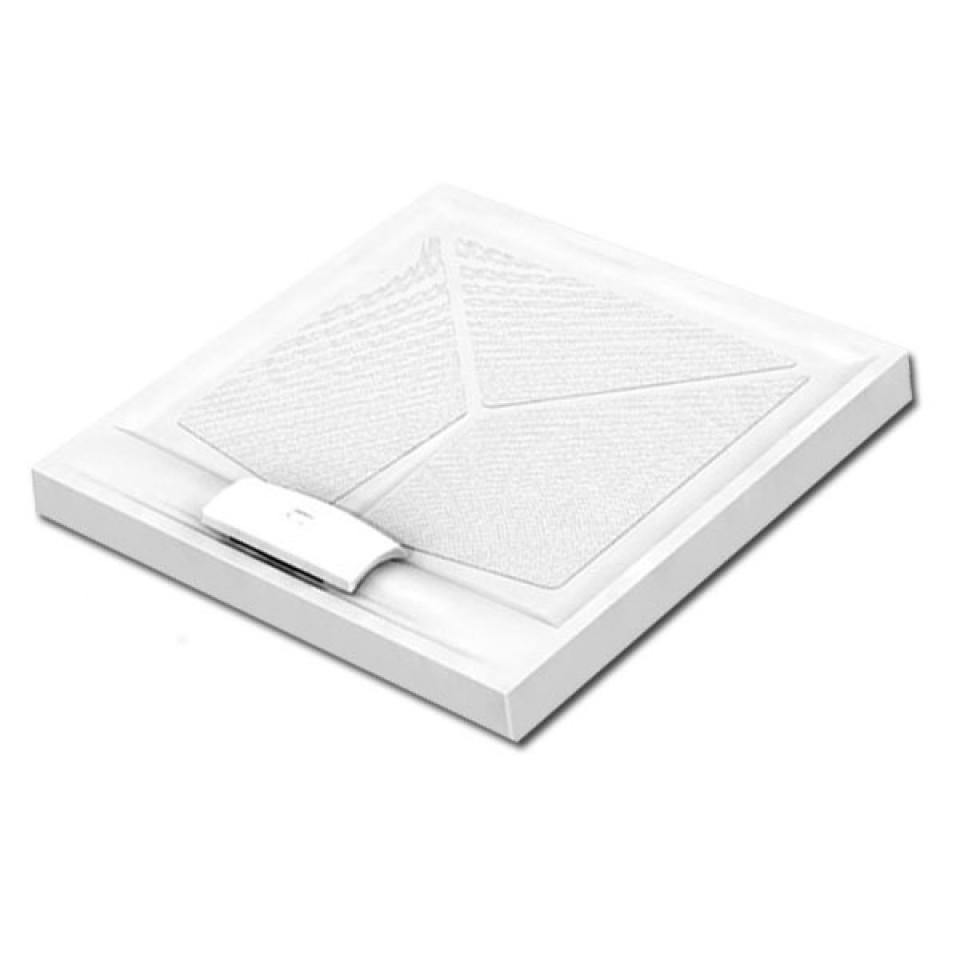

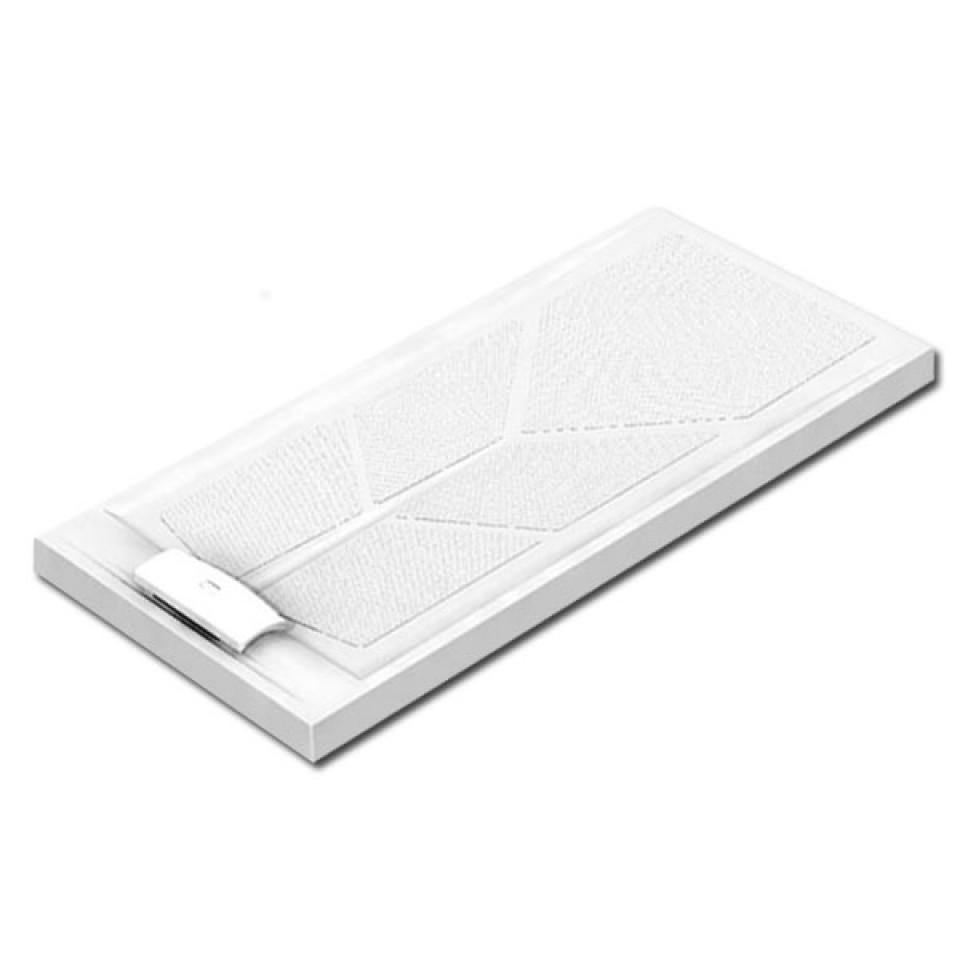

AKW Sulby Shower Tray with Gravity Waste

AKW Sulby Shower Tray with Gravity Waste

•Patented above floor gravity waste with 8 possible outlet points
•Non handed - fits left or right
•Tiling upstand supplied with all shower trays
•No under tray foaming required
•Adjustable water trap of 31mm or 38mm
•Low entry step in tray for a defined showering area
•Many flexible features make for simple fitting
•Excellent drainage (35mm fall inside tray)
•Choice of corner, side and end ramps for easy access
•No messy pipework, improving the looks
•Constructed of hand laid fibre glass, double thickness encapsulated sterling board and steel reinforcing sections
•Integral gravity waste that does not penetrate the floor
•30 stone load bearing on tray
•Easy removable cover to access trap
•Tray hollow underneath to give area to hide (re-direct) existing pipe work runs
•Can be used on timber and concrete floors
•ABS waste accepts 43mm pipe to BS EN 1455-1
•Please note: The Sulby waste is limited to 7 litres per minute, please check shower performance for compatibility
•Guaranteed for life*


Gravity Waste:
•Good seals and location
•Built in filter
•124mm deep below mounting surface
•50mm water trap depth (seal)
•50mm threaded waste fitting
•Please note: The Sulby waste is limited to 7 litres per minute, please check shower performance for compatibility
