AKW Square Tile Gravity Waste for Showerdecs TSG52
AKW Square Tile Gravity Waste for Showerdecs TSG52 is backordered and will ship as soon as it is back in stock.
✅ In stock (VAT included in price)
AKW Square Tile Gravity Waste for Showerdecs TSG52
Description
Description
Product Overview

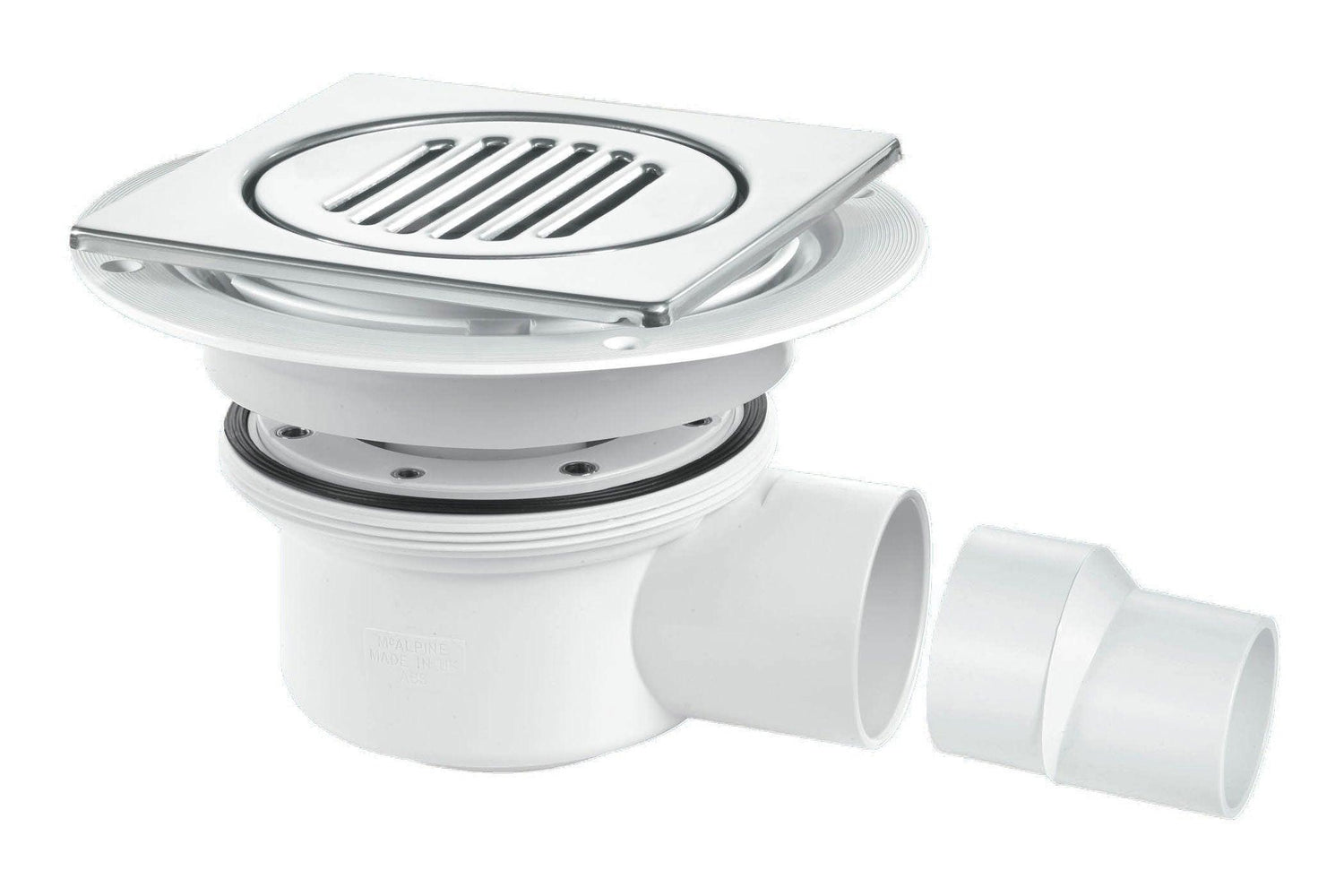

A two-part, 50mm water seal trapped gully with a square chrome top, designed for use with AKW and Contour wet floor formers including ShowerDec®, Tuff Form8, and Tuff Form. The square stainless steel finish makes it suitable for tiled wet room floors where a discreet, flush appearance is required. The two-part construction allows the top section to be removed for cleaning without disturbing the installation.
Benefits
High flow rate for level-access shower areas. Maximum flow rate exceeds 40 litres per minute, comfortably handling high-output shower heads without pooling — particularly important in level-access and wet room installations used by people with limited mobility.
Square top for tiled floors. The square chrome stainless steel cover sits flush with surrounding floor tiles, giving a clean, integrated finish without a visible centre screw or protruding fitting.
Two-part design for straightforward maintenance. The gully separates into two parts, allowing the top to be lifted clear for routine cleaning without tools or disturbing the floor former below.
Technical Specifications
| Specification | Detail |
|---|---|
| Product code | 08GT52-S |
| Model | TSG52 |
| Top finish | Square chrome stainless steel |
| Trap type | 2-part trapped gully |
| Water seal depth | 50 mm |
| Waste depth | 100 mm |
| Overall body width | 200 mm |
| Overall body height | 130 mm |
| Outlet diameter | 101 mm |
| Max. flow rate | In excess of 40 litres per minute |
| Compatible floor formers | AKW ShowerDec®, Tuff Form8, Tuff Form, and Contour wet floor formers |
| Drainage type | Gravity |
In the Box
TSG52 two-part trapped gully with square chrome top (08GT52-S)
FAQs
Can this waste be used with a pumped drainage system?
No. The TSG52 is a gravity waste and requires a fall to the drain. Where gravity drainage is not achievable — for example in a ground-floor wet room without sub-floor void — a pumped waste such as the USG1-WH is required instead.
Is there a round chrome version available?
Yes. The round chrome top version is available under product code 08GT52-R, and a McAlpine standard two-piece version is available as 08GT52NSC. All share the same TSG52 gully body.
What floor depth is needed to fit this waste?
The waste is 100 mm in depth. Confirm that your floor former specification allows for at least this depth of void beneath the waste outlet before ordering.
