AKW Digipump M17 with Silentflow+ Waste (PGTF)

by AKW
SKU 25458
  • 22mm inlet and 22mm outlet connectors - Compatible with PW50 (22mm) pumped waste

  • Additional flow sensor kits are available - Required for use with dual feed showers

  • Easily serviceable - Reduces down-time and inconvenience to end users

  • Delayed start up and run on settings - Easy to set up and configure ensuring full drainage of shower tray

  • Compact with the pump and controller enclosed in one unit - Ideal for bathrooms with limited space

  • Flow meter input - Pump automatically adjusts to the variation of water supply

  • Internal TGA fuse -

  • Max flow rate 17 litres/min - Suitable for electric and mixer showers

  • Suitable for use with wide range of electric and/or mixer showers including AKW, Mira, Triton and other brands - Compatibility with electric and mixer showers enables greater flexibility based on the individual needs of the user

  • Non-handed unit - Pump head can be rotated to allow flow in either direction

  • Reversible pump head features four valves with flap valve and bowl design - Pump head design allows for better removal of debris and installation of inlet pipework from either left or right

  • Pump head can be rotated - Allows flow in either direction

  • A hard-wired connection can be made to the flow sensor of an iTherm electric shower and many other brands, but also this offers a wireless connection to the flow sensor within AKW SmartCare Plus® and Smart Care® Lever electric showers - Wired or wireless connections offer the installer flexibility when fitting, as this can be tailored to the space, with wireless connections eradicating the need for post-installation decorative work

  • Superior pump performance with between 11-20lpm maximum capacity in a ‘real life scenario’ - Has been designed to be highly efficient and match the flow volumes of electric and mixer showers to ensure suitability for everyday use

Product contents

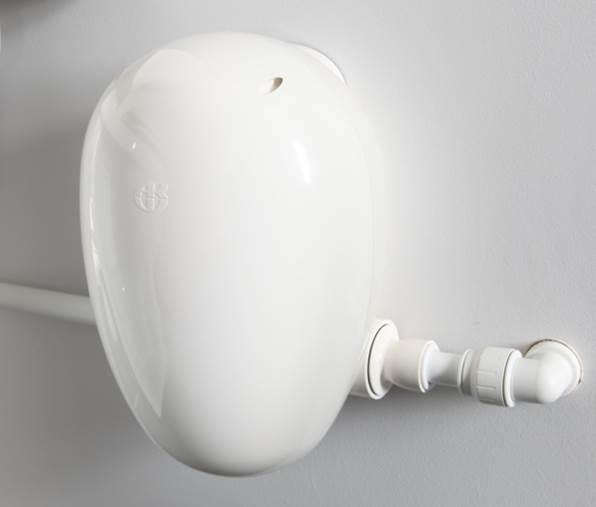

1 x M17 Digi Pump - Component Part
1 x John Guest in-line 15mm connector

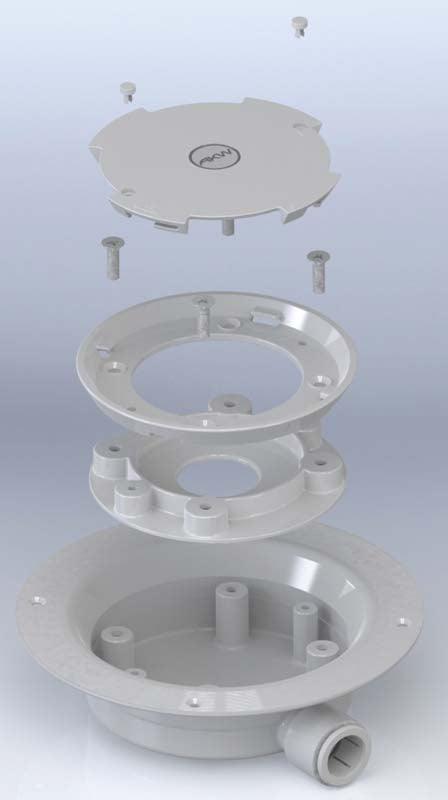

1 x AKW Silentflow+ PGTF 22mm
1 x Brass Body 15mm Compression Fitting Y Filter
1 x DigiPump Flow Sensor

SKU: 25458
