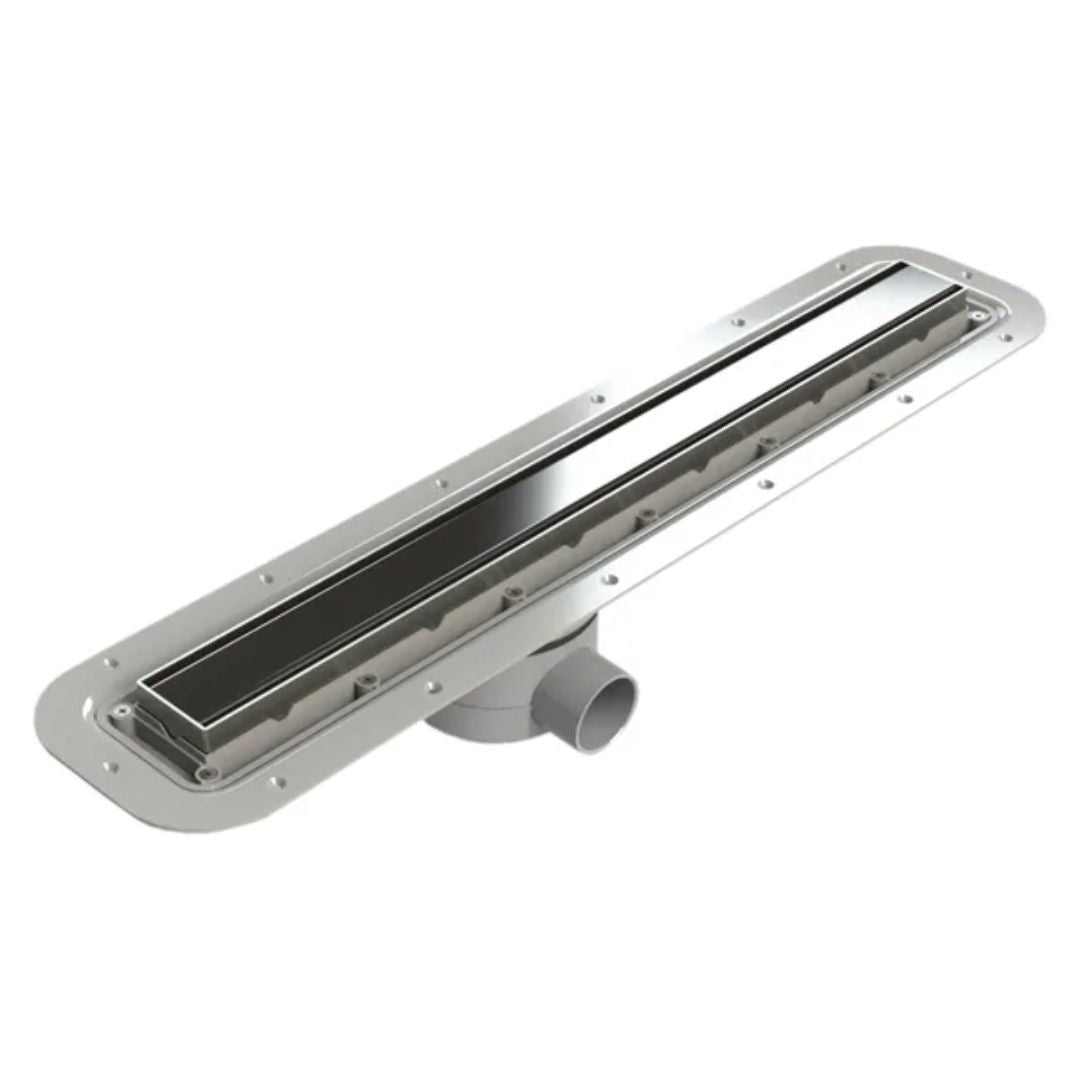

Impey Aqua-Dec Linear Drain

A complete drainage solution for wetrooms, available with 400mm, 600mm or 800mm finished drain tops to suit your Aqua-Dec Linear wetroom floor former.

The offset outlet allows the drain channel to be rotated 180° at installation, and the outlet itself rotates a full 360°, so waste can be positioned to avoid joists and pipework.

It is tested to relevant standards, with flow rates of 35–40 l/min depending on configuration.

Choose from four drain top ranges, all manufactured in 304-grade stainless steel:

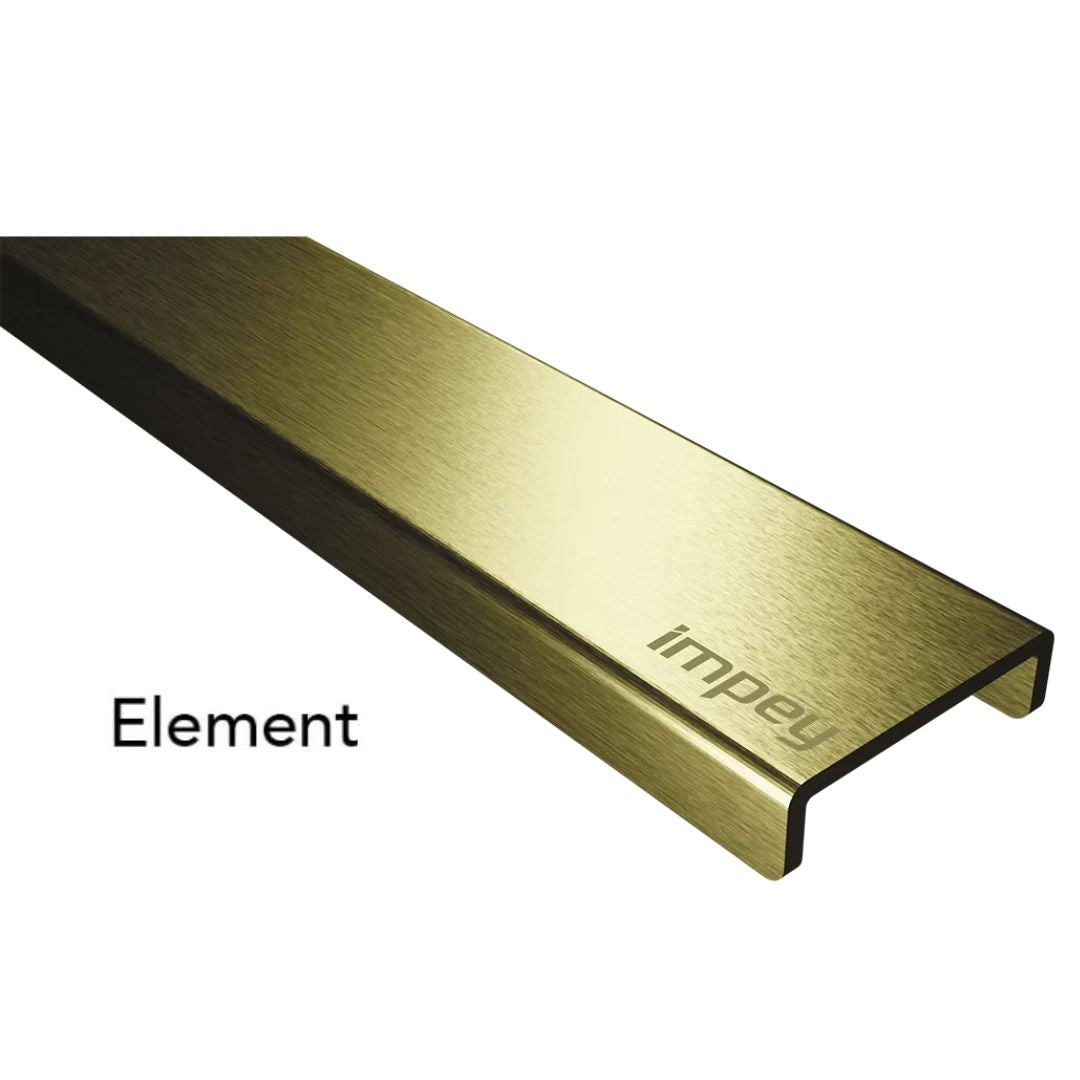

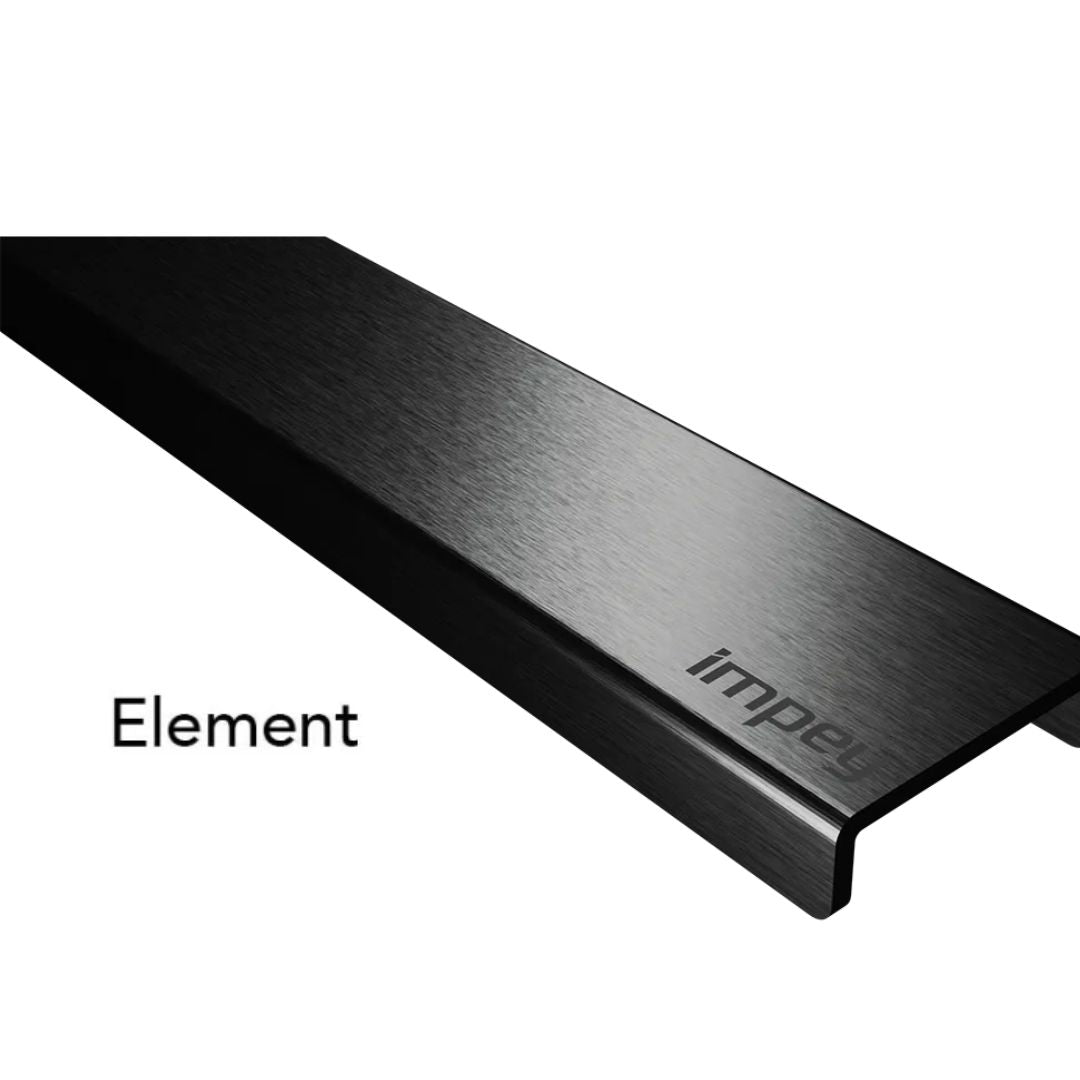

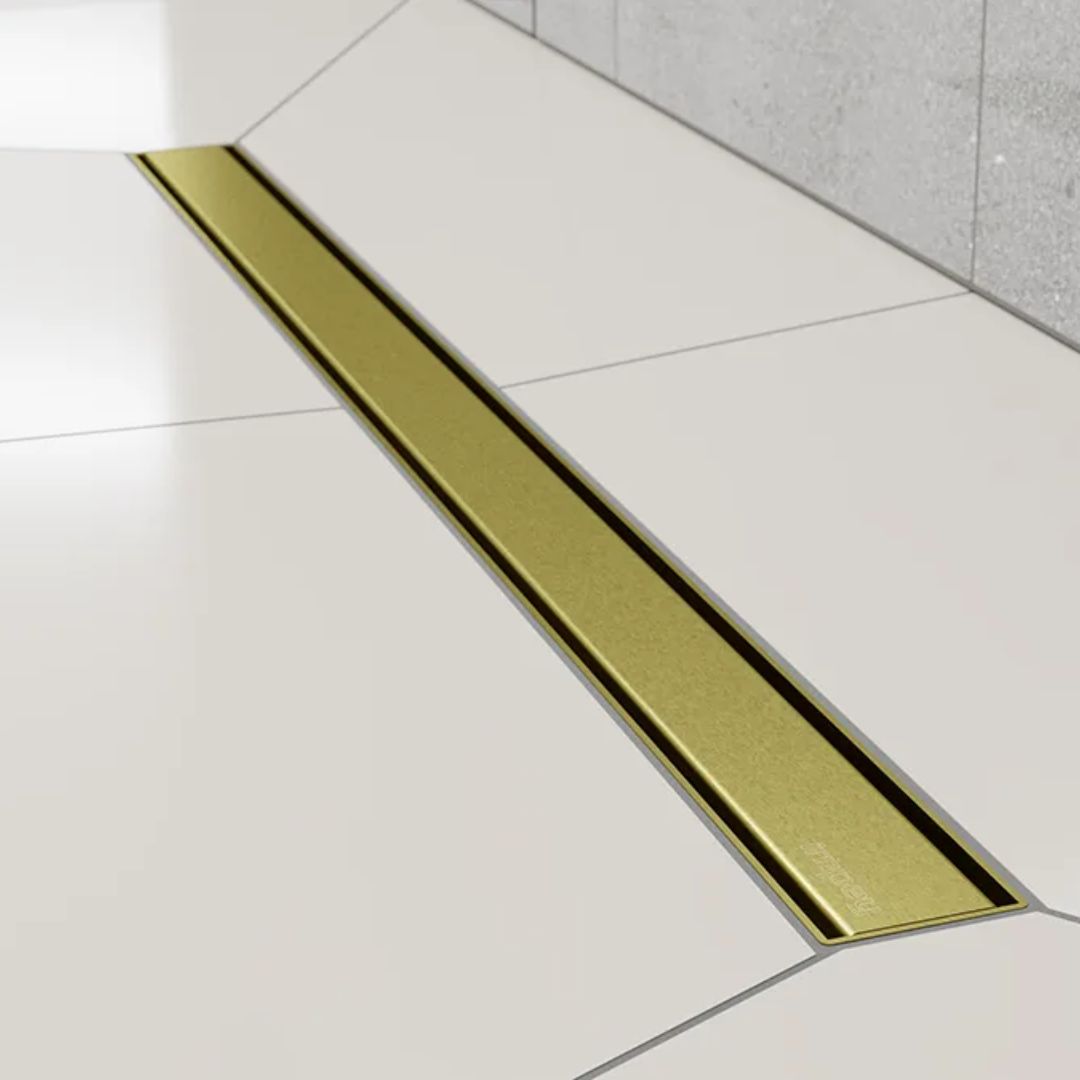

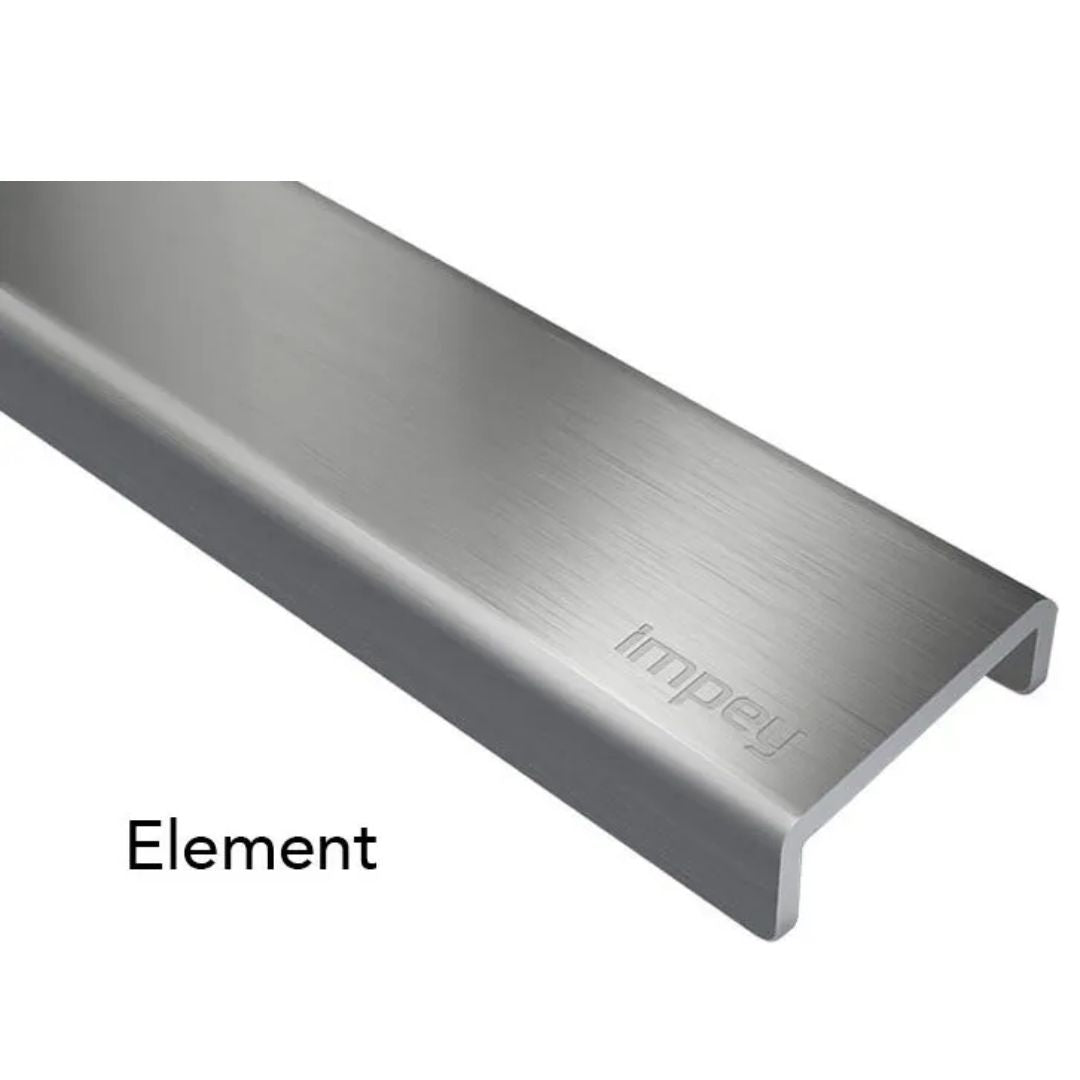

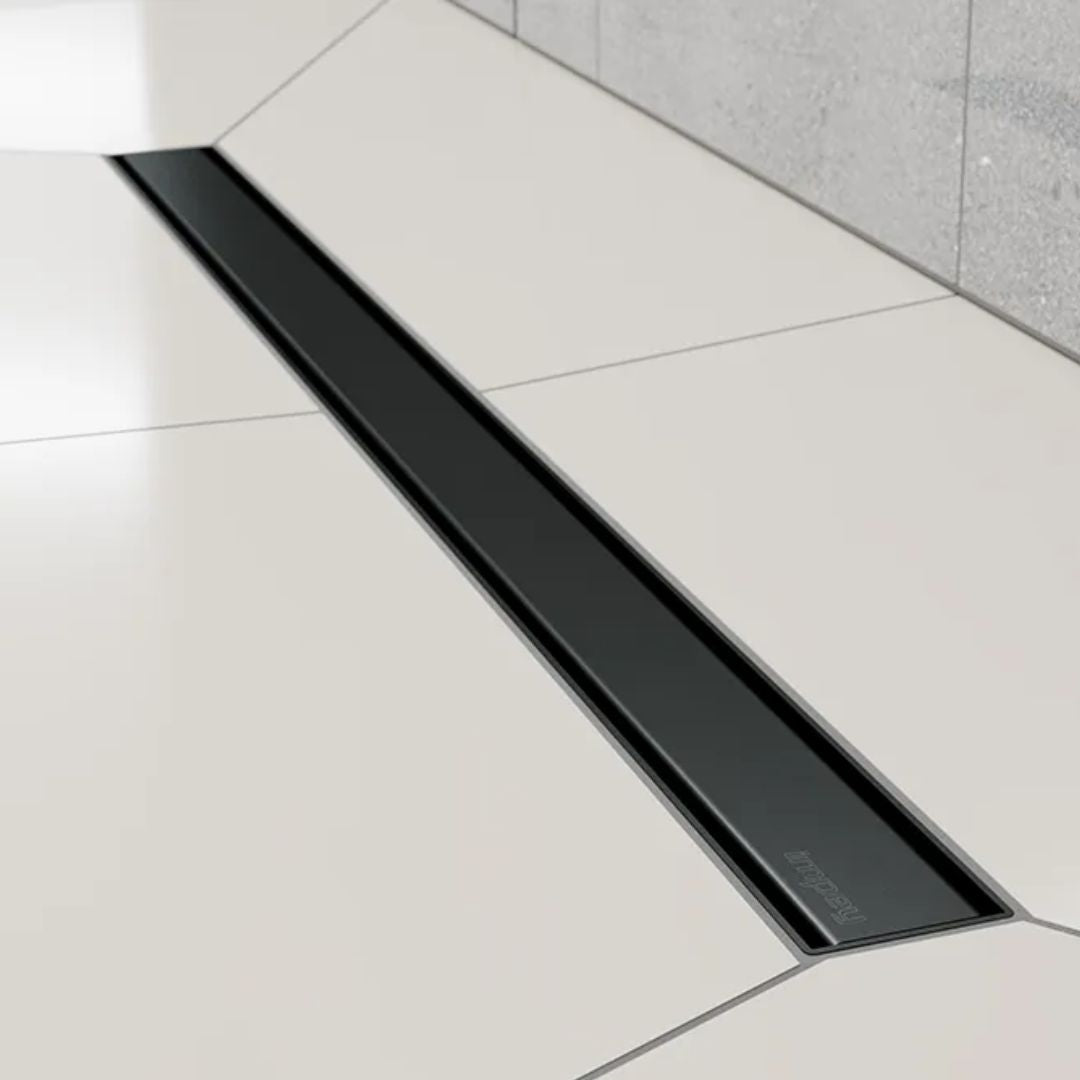

• Linear Element: Brushed Stainless Steel, Brushed Gold or Brushed Black, with adjustable height. The Brushed Gold and Brushed Black finishes use an advanced PVD coating*, which makes it easier to coordinate with brassware and accessories.

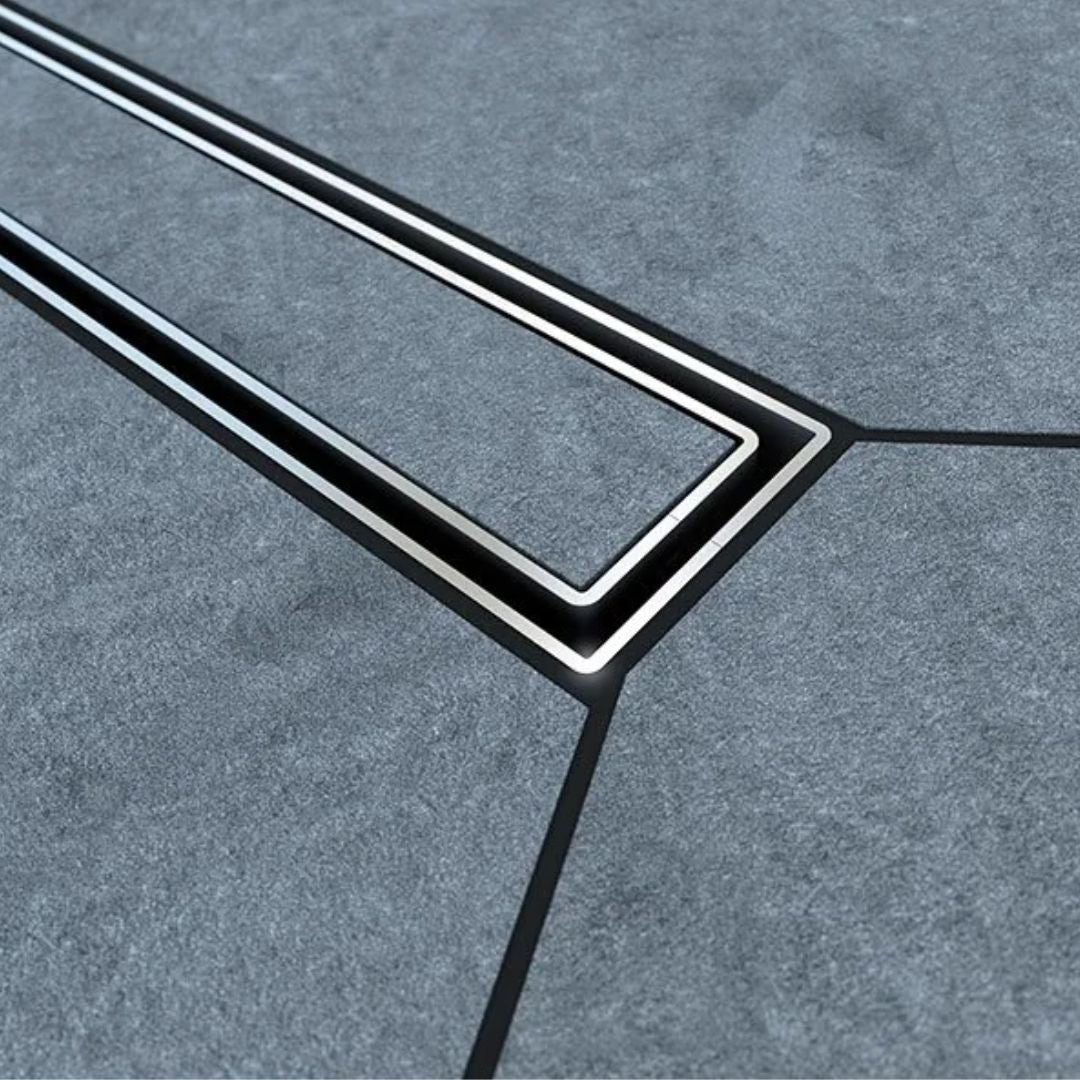

• Linear Tiled Insert: A near-invisible, minimalist finish with a 13mm or 24mm fixed height from the Linear dec to the top of the tiling frame.

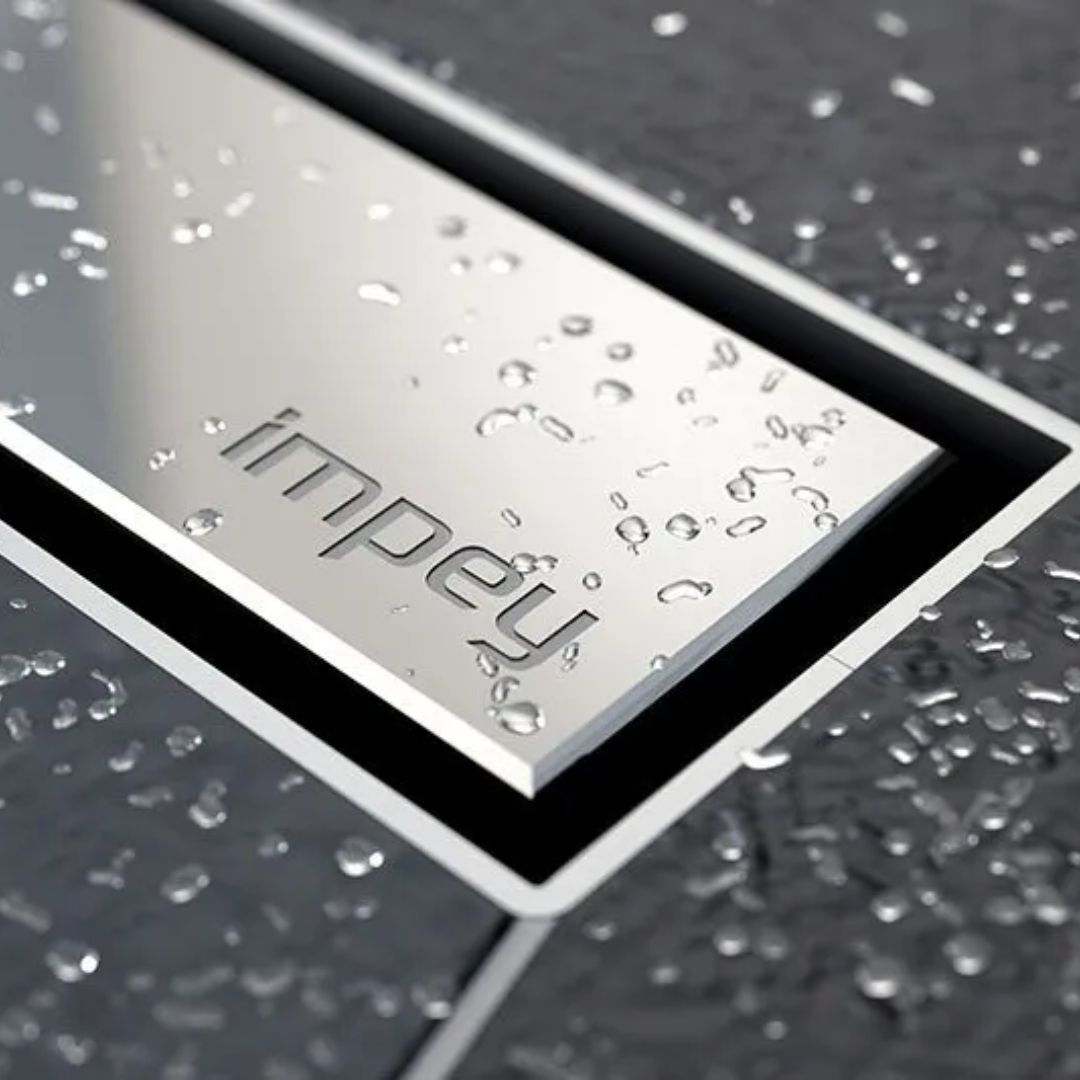

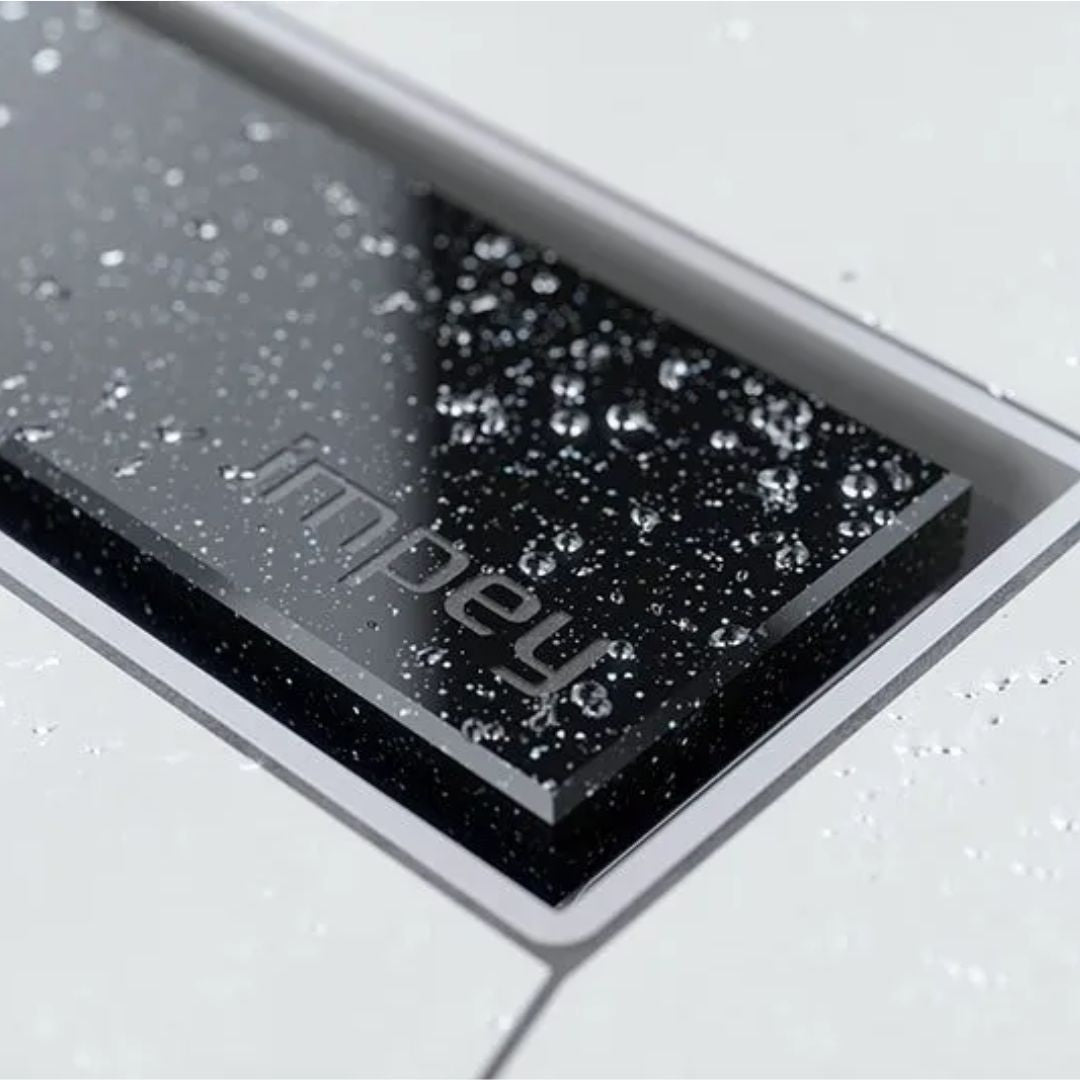

• Mirage: Polished Stainless Steel, or Black Metallic Glass with a subtle shimmer. Both have a 13mm fixed height from the Linear dec to the top of the tiling frame.

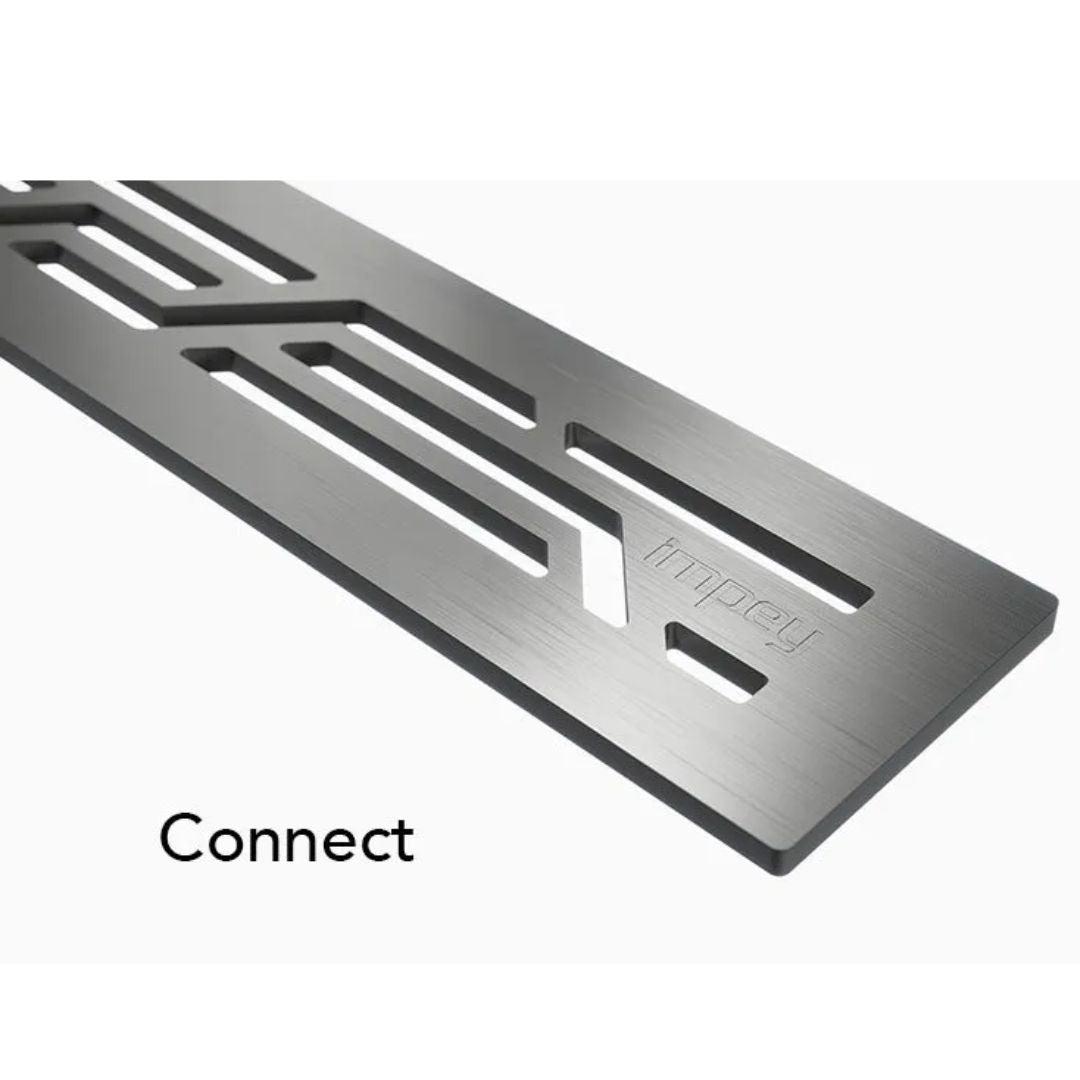

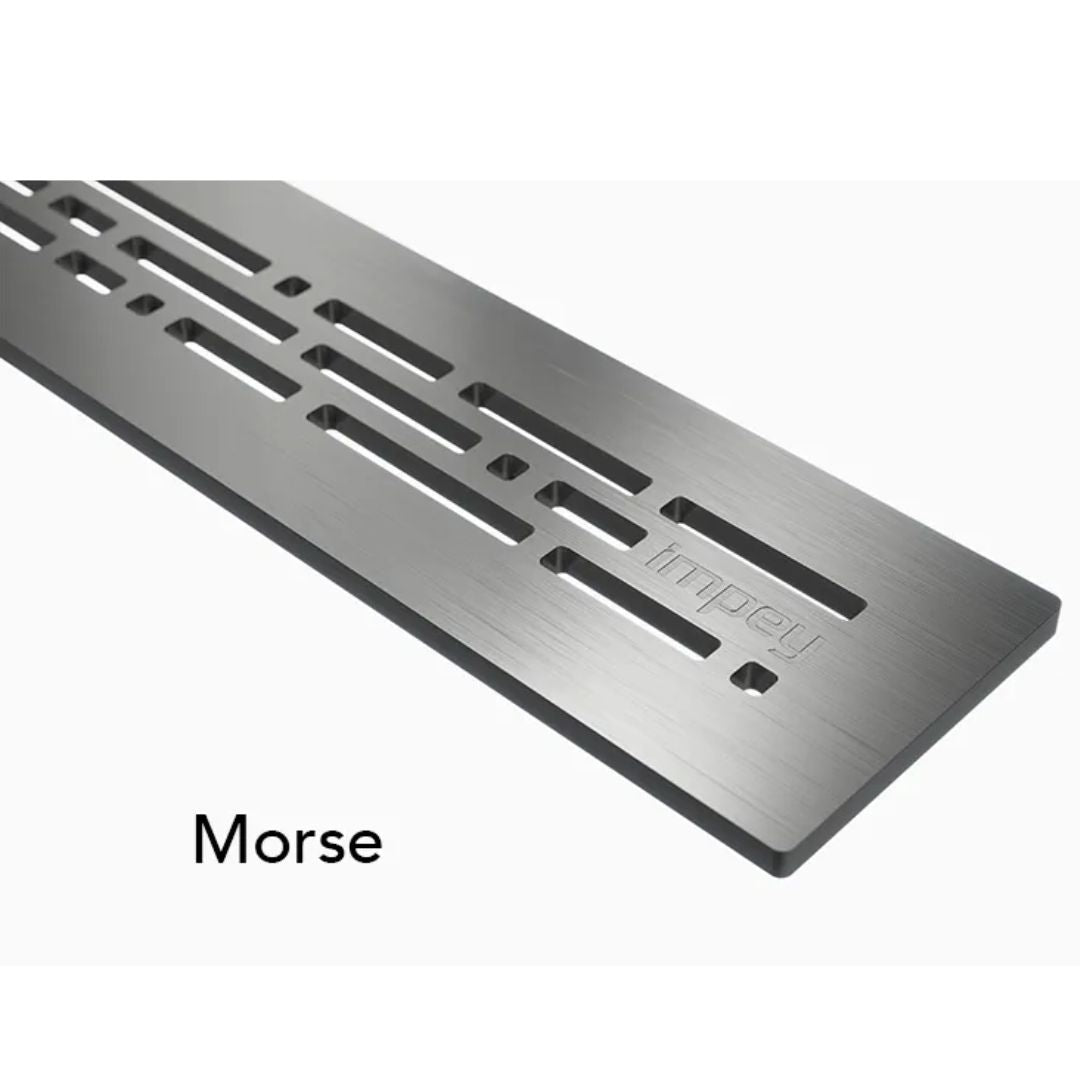

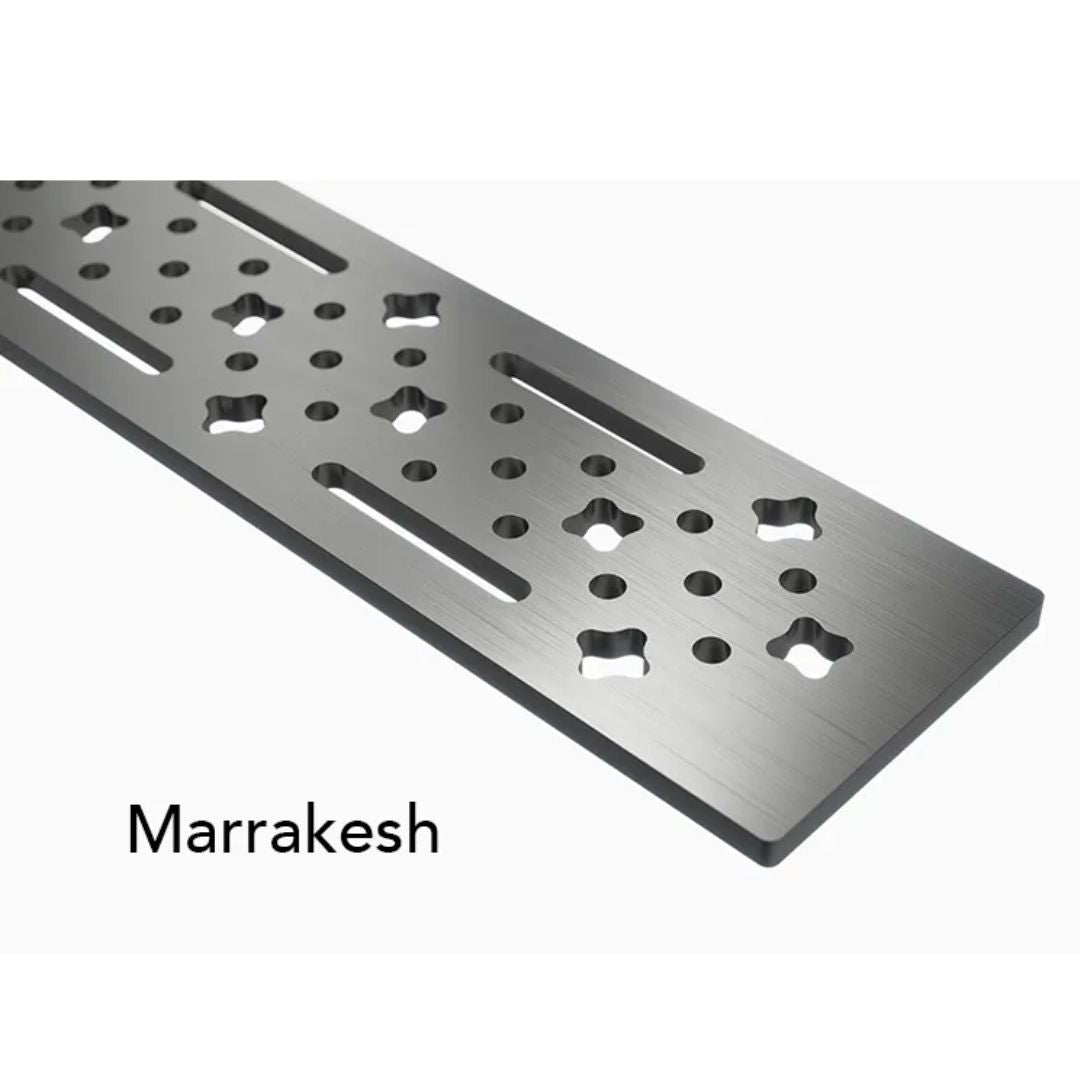

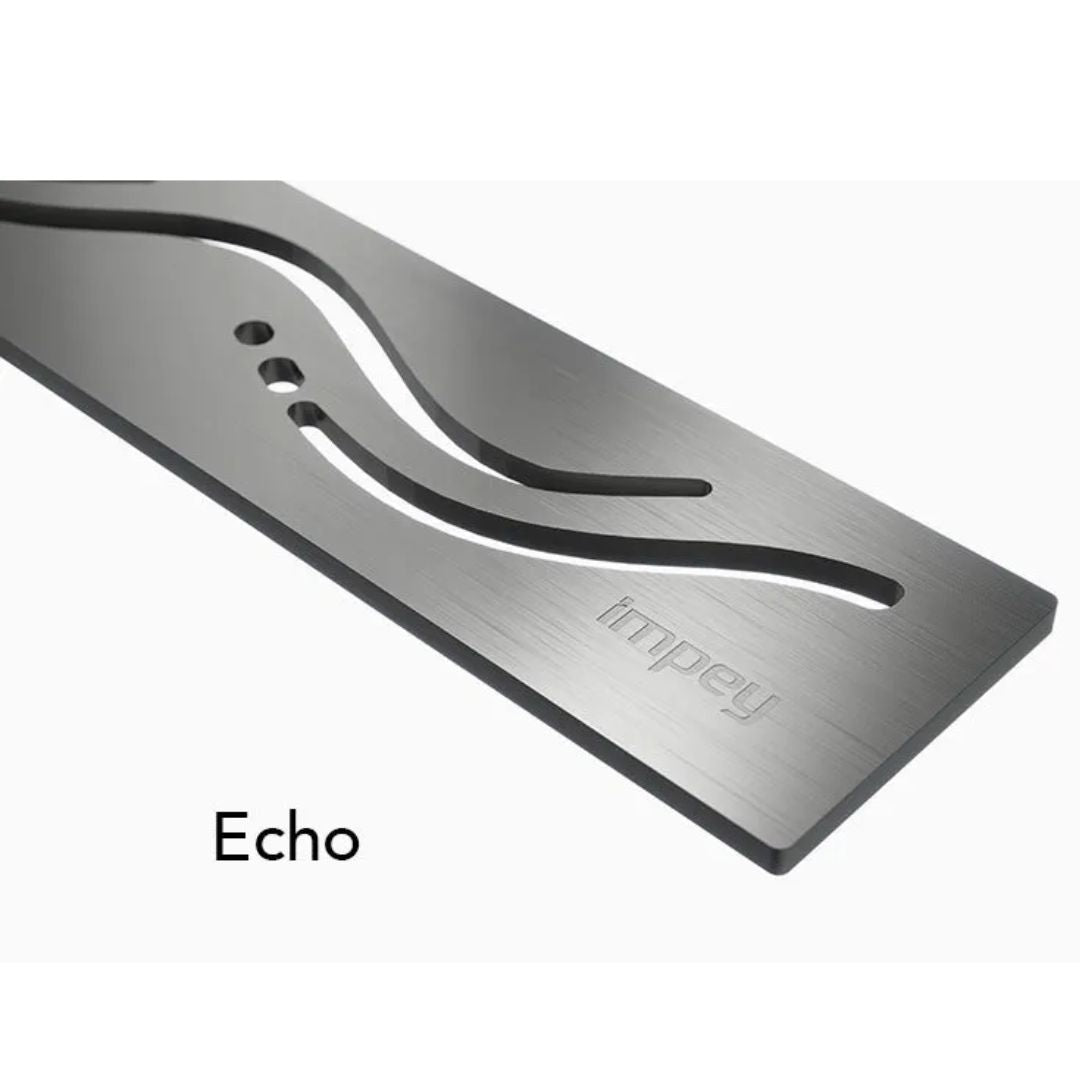

• Designer: Connect, Morse, Echo and Marrakesh stainless steel patterns, with an adjustable drain height of 6–26mm.

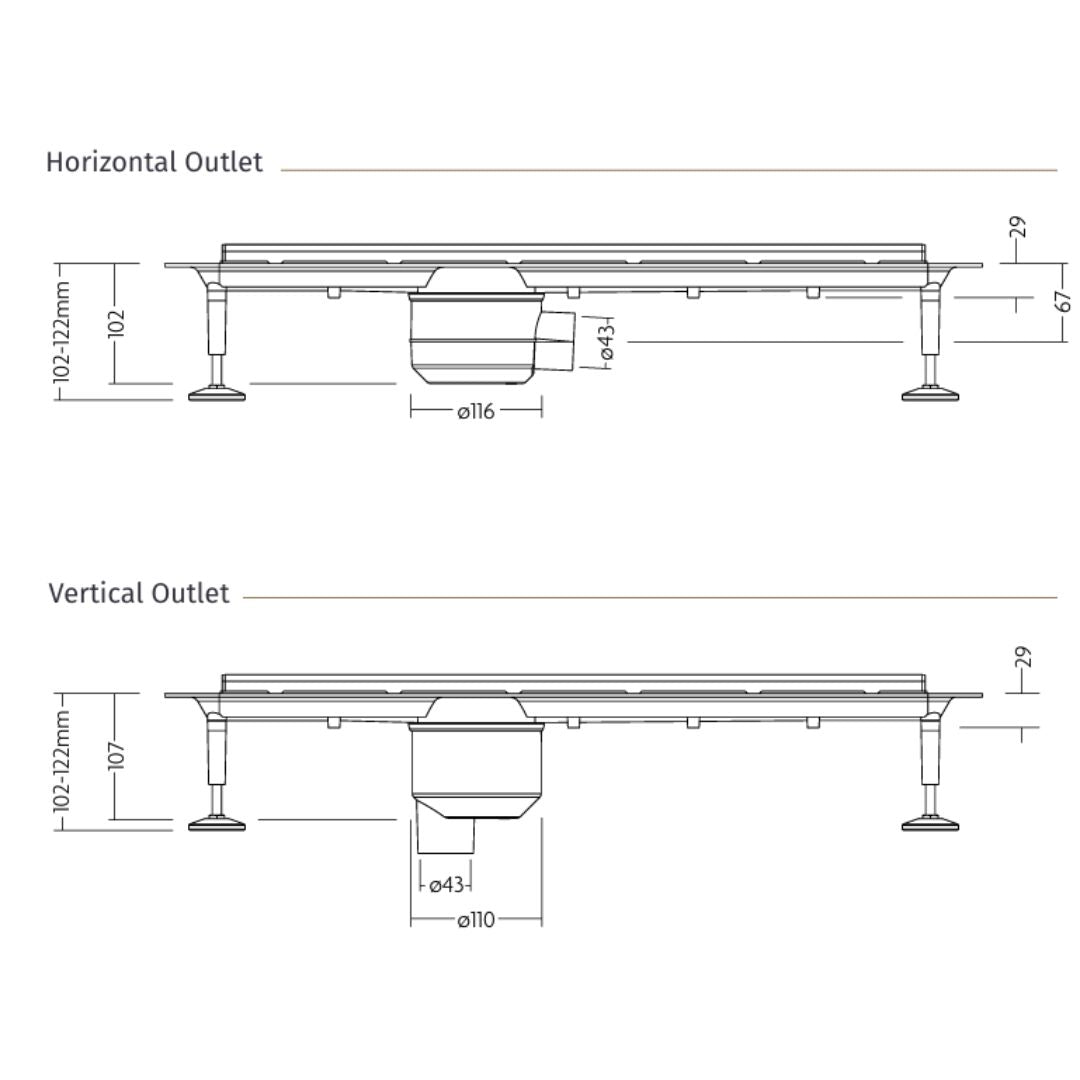

Each drain top is available in a gravity waste configuration with either a horizontal or vertical outlet.

Tech Specs

Key Features

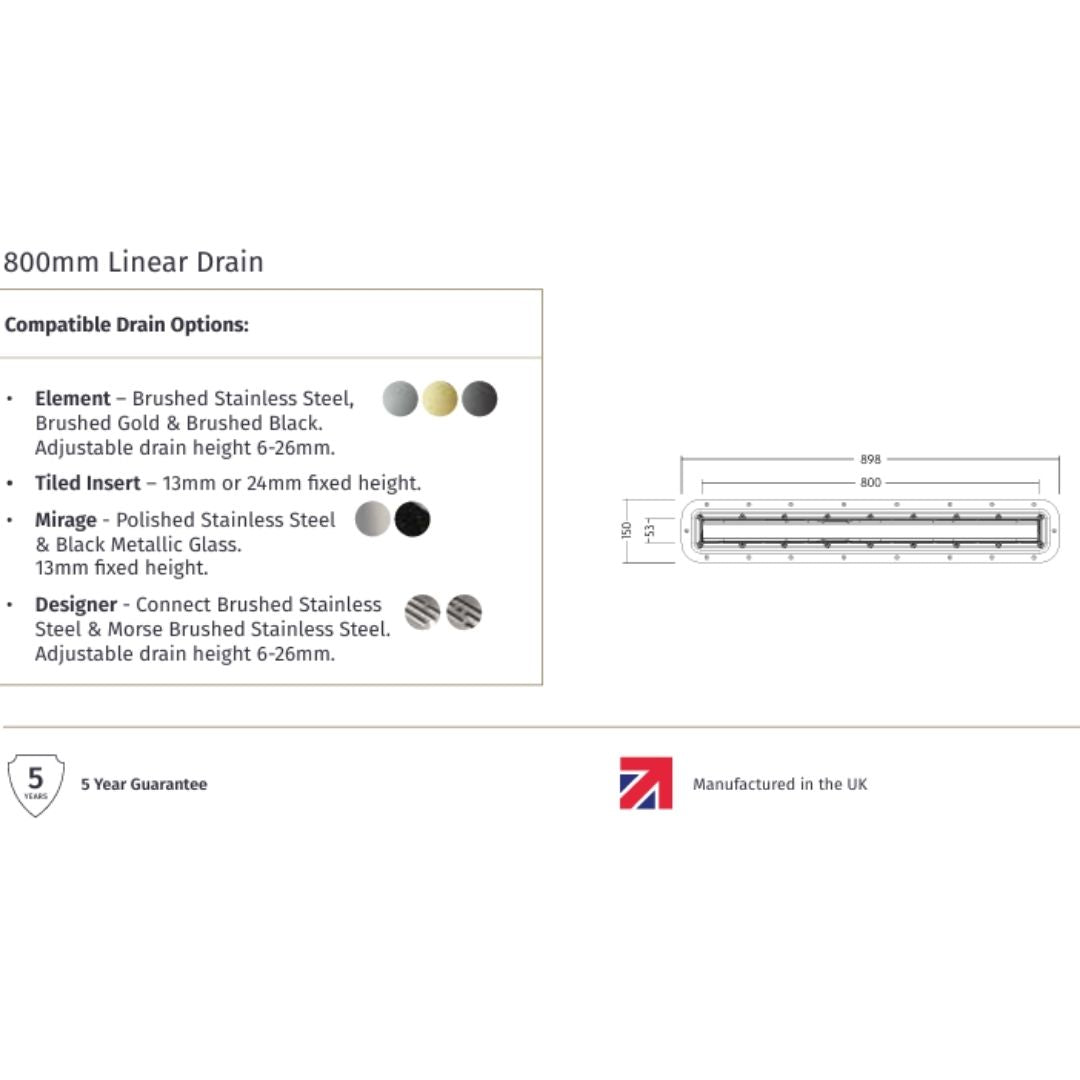

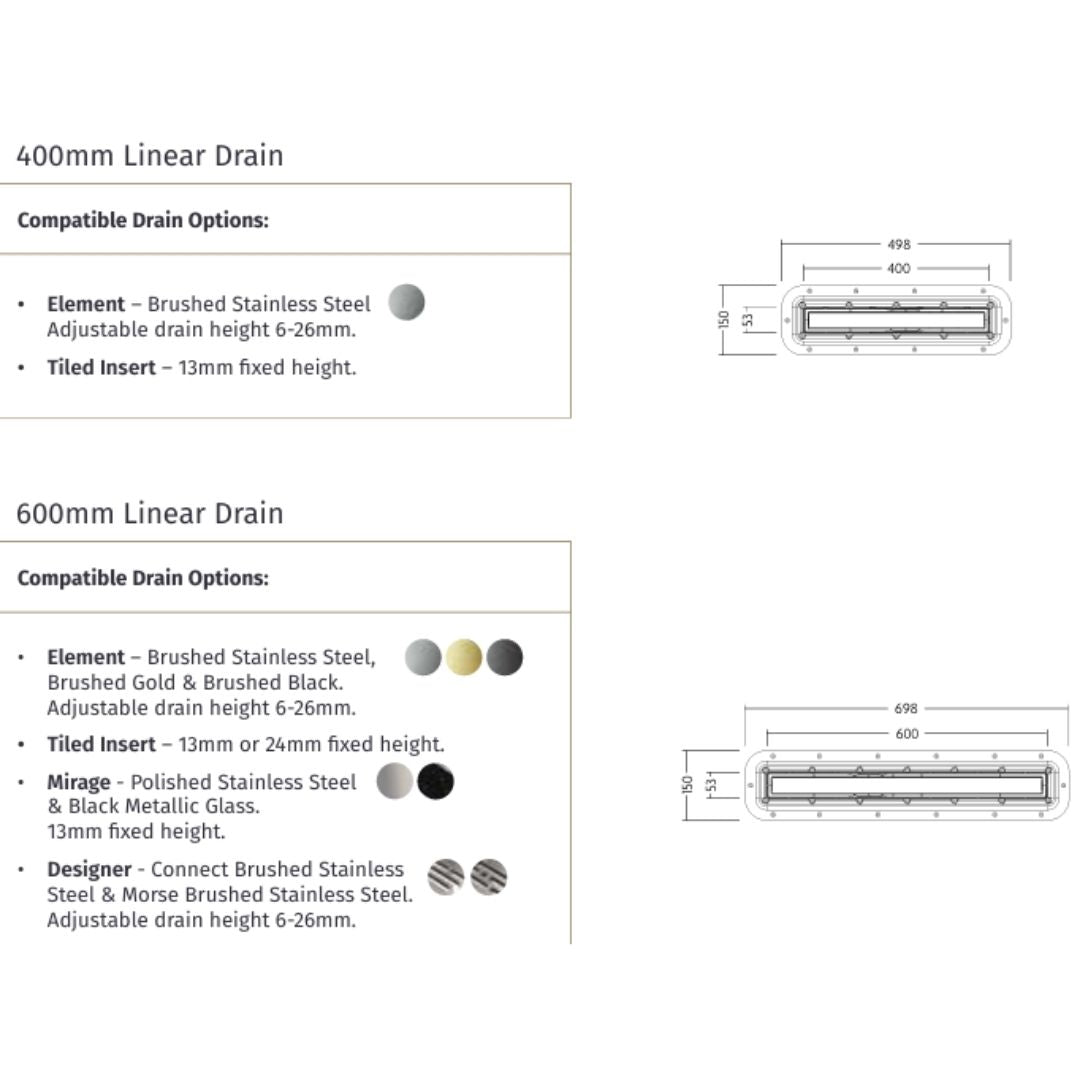

• 400mm, 600mm and 800mm finished drain top options
• Horizontal and vertical gravity outlet options
• 180° rotatable drain channel to avoid pipework and joists
• 360° rotatable outlet for flexible pipe alignment
• Integrated membrane clamp for a secure, watertight seal
• 50mm water seal prevents odours escaping from the drainage system
• Easy-clean design with a specially designed hook and a removable dip tube and bucket
• Tested in accordance with EN 1253
• Four drain top ranges (Linear Element, Tiled Insert, Mirage and Designer) to suit anything from a discreet tiled finish to a statement colour
• 304-grade stainless steel drain tops, adjustable or fixed height to integrate cleanly with the floor finish
• PVD-coated Brushed Gold and Brushed Black finishes to coordinate with brassware and accessories
