Impey  |  SKU: IPBW25

Impey Back To The Wall Toilet Plinth

£89.99
Height

✅ In stock (VAT included in price)

Three icons representing free delivery, customer rating, and expert help with contact information on a white background.

Description

For wheelchair users and people with reduced mobility, a standard-height toilet can present a significant daily challenge.

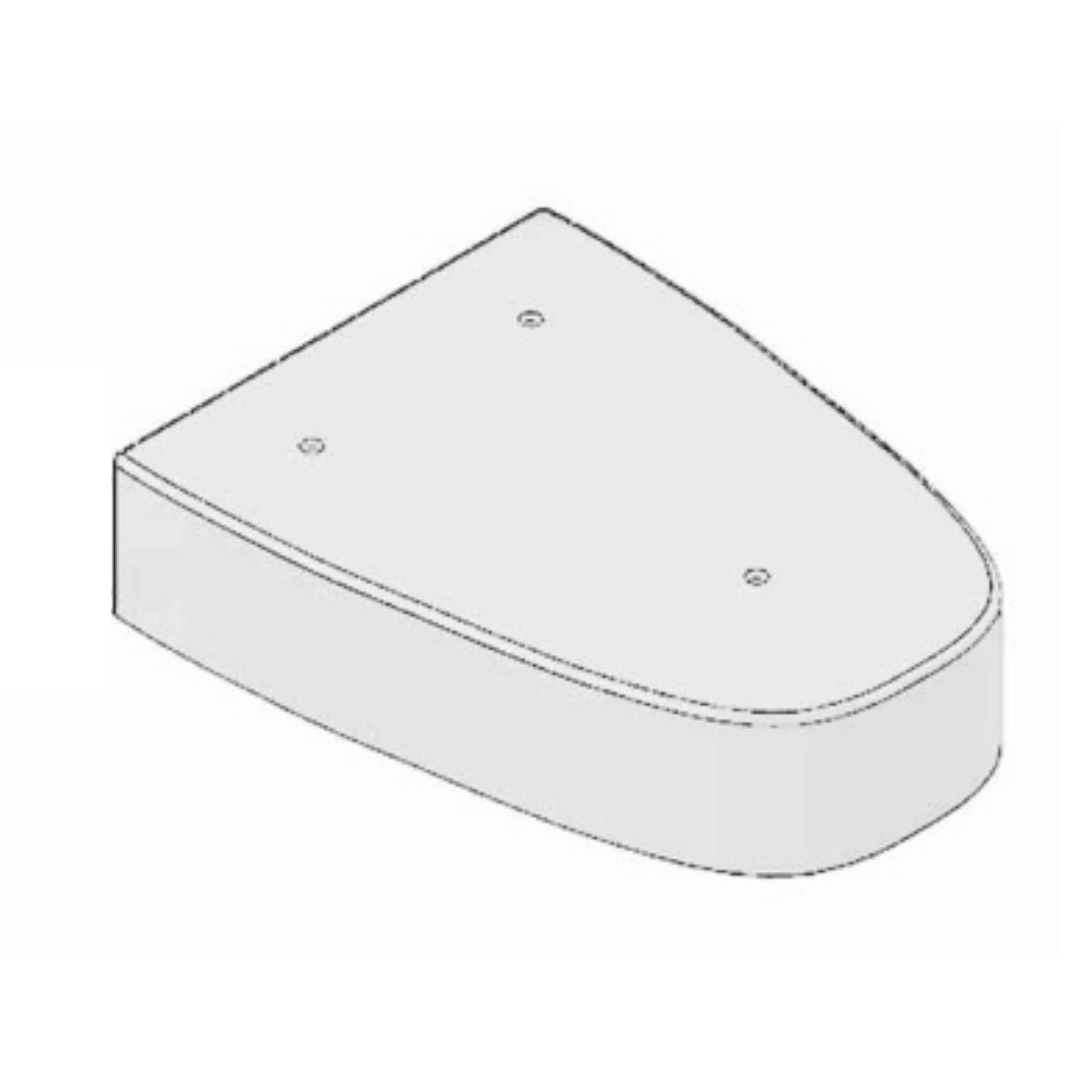

The Back To The Wall Toilet Plinth is designed to raise an existing back-to-wall toilet pan to a more accessible height, eliminating the need for costly pan replacement or major bathroom reconfiguration.

Available in four heights — 25mm, 50mm, 75mm, and 100mm — the plinth fits neatly beneath the toilet, presenting a low-profile, discreet appearance that integrates naturally into the bathroom environment.

Three countersunk M6 fixing points provide a secure, stable installation, and the radiused edge profile gives a clean, finished look consistent with contemporary bathroom design.

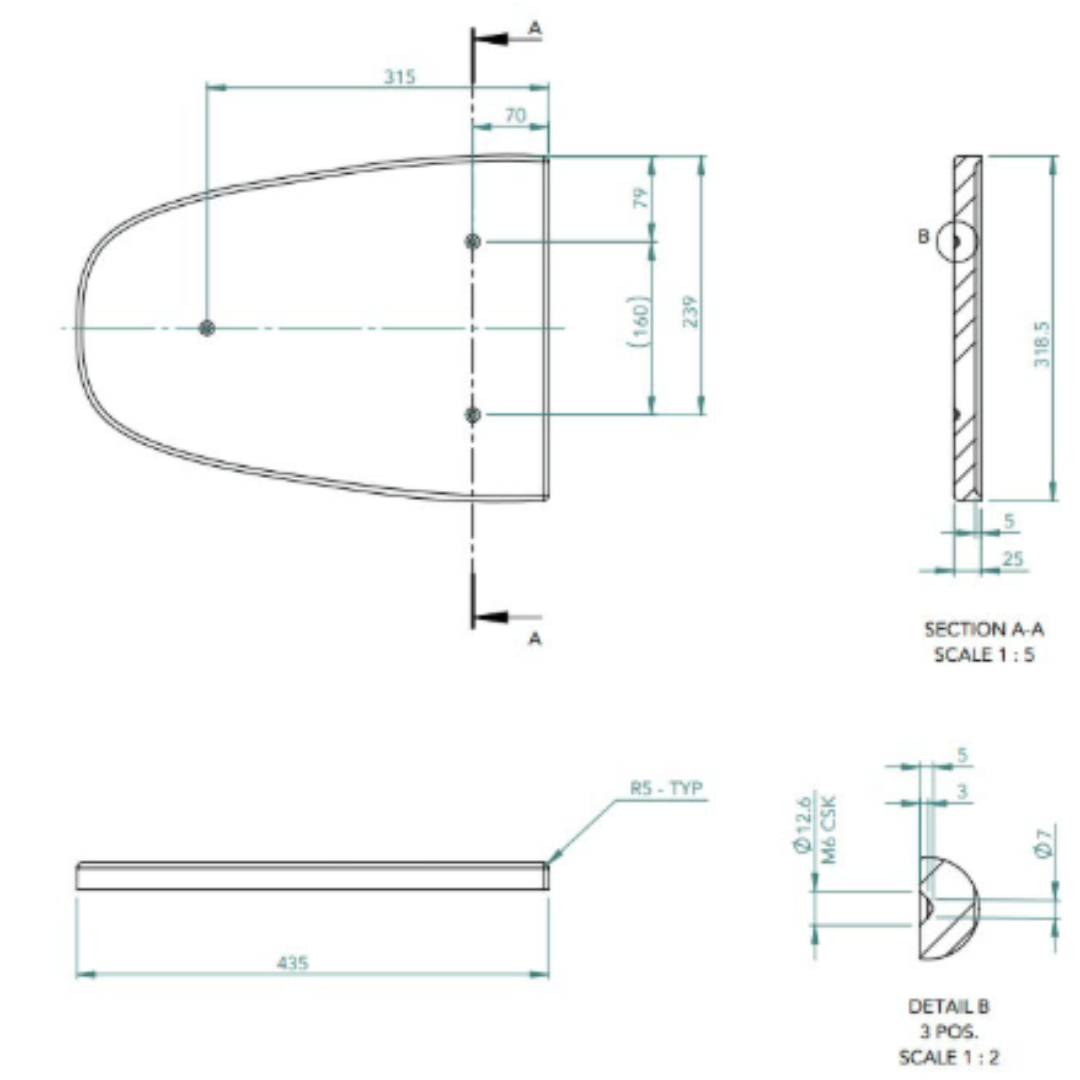

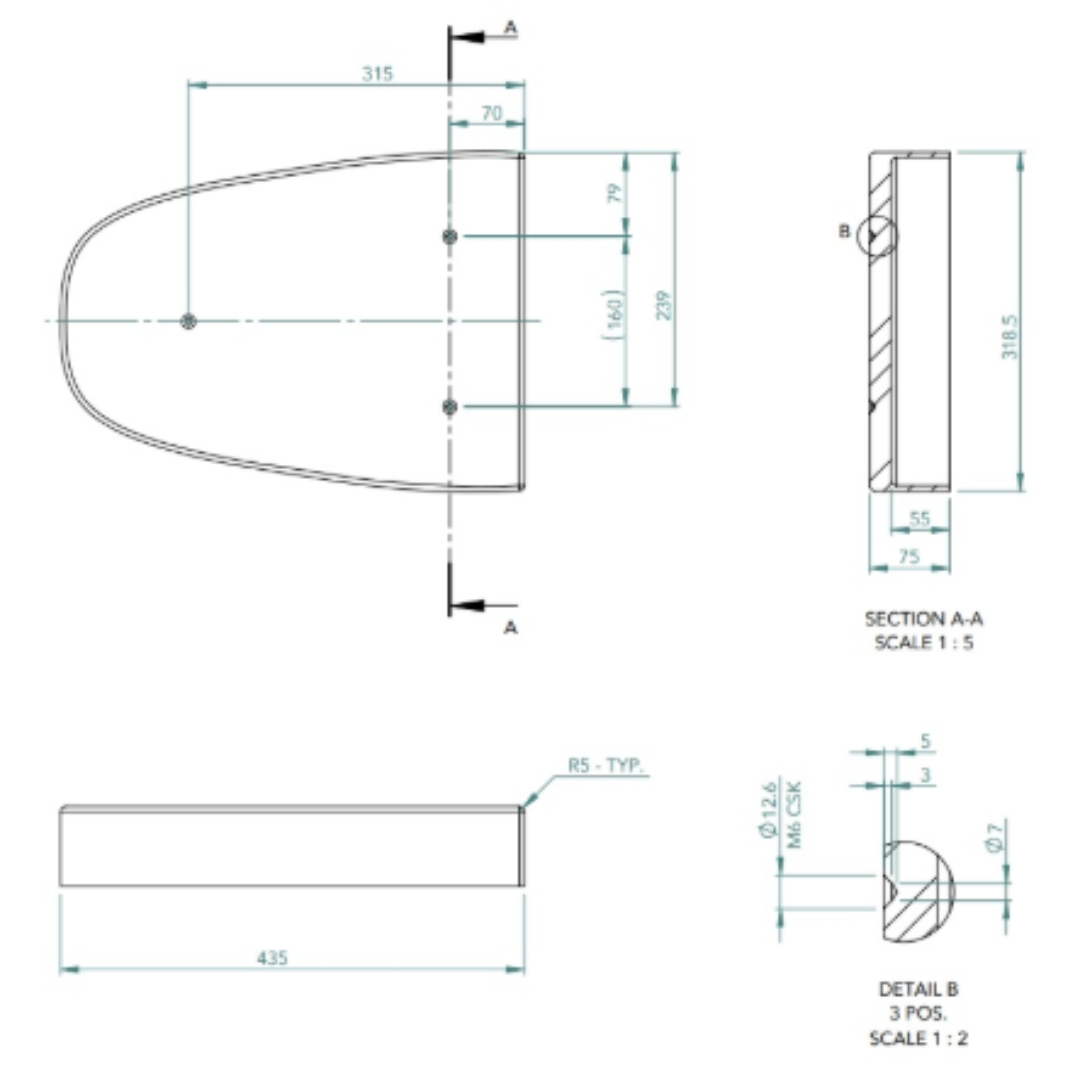

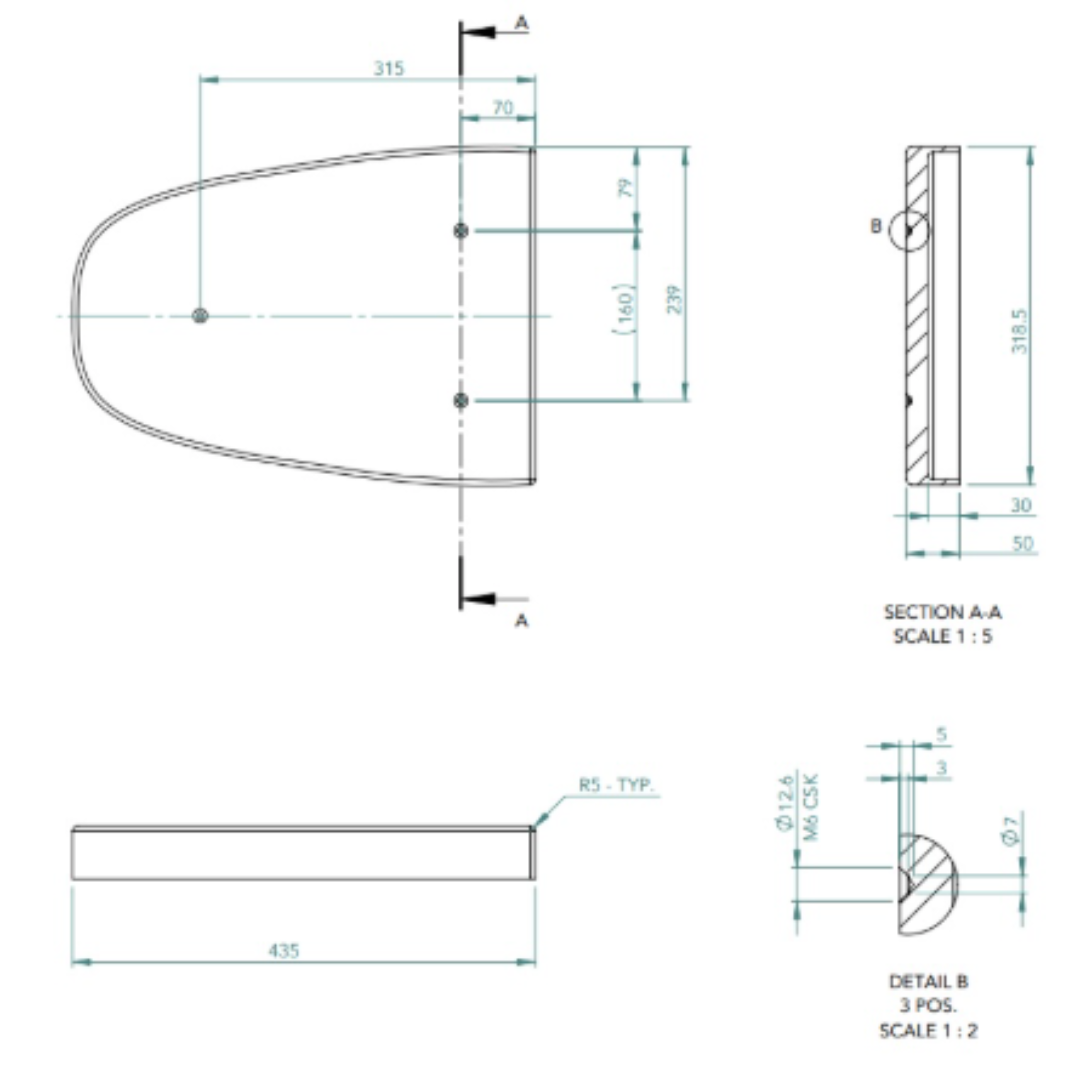

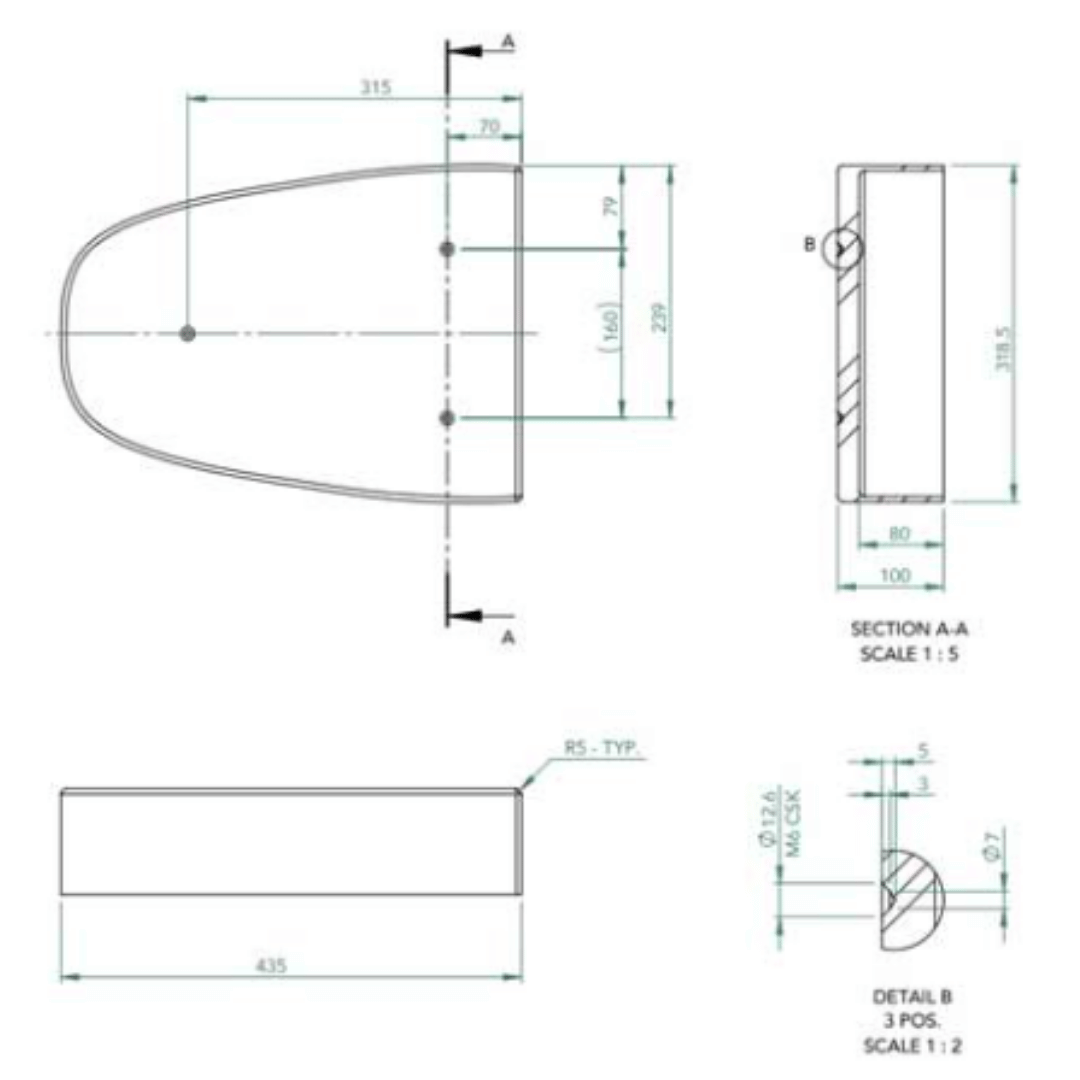

Technical Specifications

Specification

BTW25

BTW50

BTW75

IPBW100

Plinth Height

25mm

50mm

75mm

100mm

Overall Length

435mm

435mm

435mm

435mm

Overall Width

315mm

315mm

315mm

315mm

Back Face Height

318.5mm

318.5mm

318.5mm

318.5mm

Internal Recess Depth

5mm

30mm

55mm

80mm

Fixing Hole Centres (vertical)

239mm

239mm

239mm

239mm

Upper Fixing Hole from Top

79mm

79mm

79mm

79mm

Fixing Type

M6 CSK

M6 CSK

M6 CSK

M6 CSK

Fixing Counterbore Diameter

Ø12.6mm

Ø12.6mm

Ø12.6mm

Ø12.6mm

Fixing Pilot Diameter

Ø7mm

Ø7mm

Ø7mm

Ø7mm

Number of Fixing Points

3

3

3

3

Edge Radius

R5 (typical)

R5 (typical)

R5 (typical)

R5 (typical)


Key Features

  • Available in four heights (25mm, 50mm, 75mm, 100mm) to suit a range of accessibility requirements and user needs
  • Designed for use with back-to-wall toilet pans, allowing the existing toilet to be retained — no pan replacement required
  • Low-profile, discreet appearance integrates cleanly into the bathroom without drawing attention
  • Three-point M6 countersunk fixing system provides a stable, secure installation
  • Consistent 435mm × 315mm footprint across all four heights simplifies installation planning
  • Radiused edges (R5 typical) deliver a smooth, contemporary finish
  • Reduces the need for more costly or disruptive bathroom adaptations
