Impey Whale Switch Connect Waste Pump Kit

The SWP is a flow-switch activated shower waste pump kit for installations where gravity drainage to a soil stack or drain isn't achievable. It's the original Whale waste pump kit and has been installed in over 150,000 homes across the UK — a reliable, proven choice for pumped wet room and shower tray installations.

The pump activates automatically via a flow switch installed in the shower's water supply. When the shower is turned on, water passing through the flow switch triggers the pump to run. When the shower is turned off, a 15-minute de-puddling cycle runs briefly to clear residual water from the waste — then the pump stops automatically.

The SWP handles both mixer and electric showers (up to 12 l/min for mixer; 8 l/min for electric) and includes all fittings required for a single feed electric shower installation as standard. For mixer shower installations, the Mixer Shower Conversion Kit (SWP/MX) is required separately. For wet room floor installations, a TAD13 shallow waste gully is required.

Warranty: 3 years, extendable to 5 years on registration.

Specification

Product Features

• Flow switch activated — pump triggers automatically when shower runs, no manual operation required
• 12 adjustable settings suitable for both electric and mixer shower installations
• Maximum drainage of 8 l/min (electric) and 12 l/min (mixer showers)
• De-puddling cycle clears residual water 15 minutes after the shower is switched off
• Self-priming pump with protective cover
• Low voltage transformer conforming to EN60742
• Active link diagnostics for fault identification
• IP45 rated

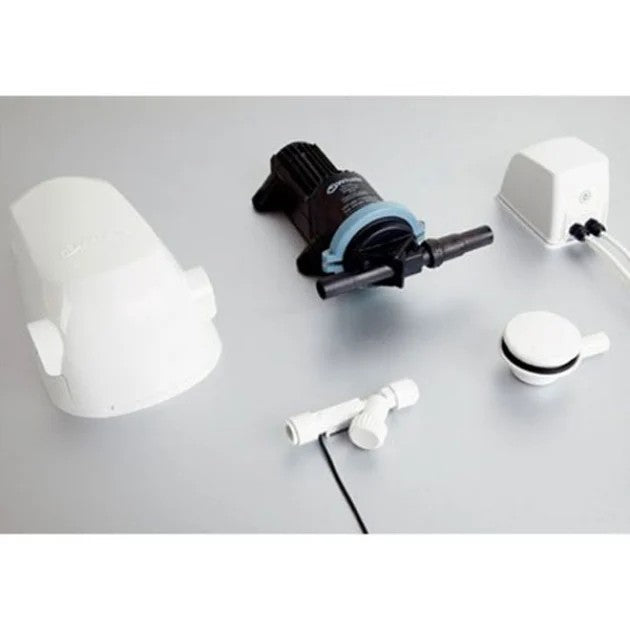

• Includes all fittings for a single feed electric shower installation
• Suitable for wet room floors and shower trays
• Proven design — installed in over 150,000 UK homes

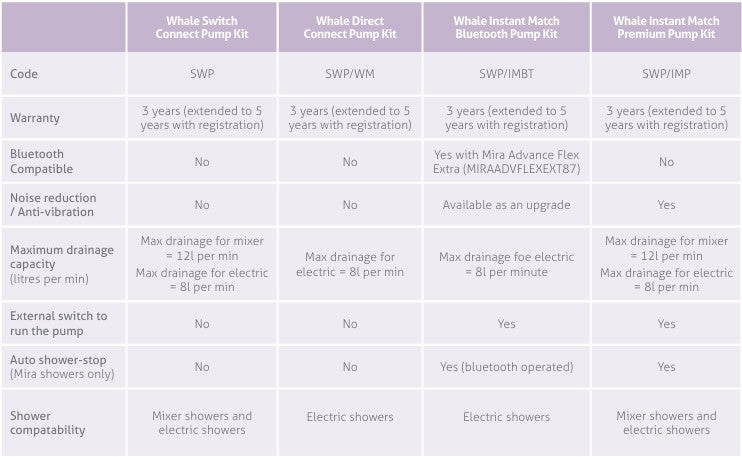

SWP is the right choice if: You need a proven, no-frills flow-switch pump for a mixer or electric shower installation and don't require Bluetooth connectivity or noise reduction.

Consider SWP/WM if: Electric shower only, no mixer requirement.

Consider SWP/IMBT if: You're installing a Mira Advance Flex Extra and want Bluetooth-controlled auto shower-stop.

Consider SWP/IMP if: You need auto shower-stop, an external switch, or anti-vibration noise reduction — and don't need Bluetooth.

For Specifiers and Installers

The SWP is activated by a flow switch in the water supply rather than a direct electrical connection to the shower — this makes it compatible with both mixer and electric showers without modification (beyond the SWP/MX conversion kit for mixer installations).

Installation notes:

• Suitable for wet room floors and shower trays
• For wet room floor installations, the TAD13 shallow waste gully is required — this is not included in the kit
• For mixer shower installations, the SWP/MX Mixer Shower Conversion Kit is required
• The kit includes all fittings for a single feed electric shower installation as standard
• 12 adjustable settings allow the pump to be calibrated to the specific shower and waste configuration
• Active link diagnostics support fault-finding without specialist equipment
• IP45 rated — suitable for the zones expected in a shower installation

Warranty is 3 years as standard, extended to 5 years on product registration with Impey.

For Homeowners and Family Members

If the shower or wet room you're installing can't drain by gravity — for example, because it's below the level of the soil pipe, or the floor layout makes a gravity fall impossible — a pump kit is the standard solution.

The Whale Switch Connect works automatically: when the shower is turned on, the flow switch detects water moving through the supply pipe and starts the pump. When you turn the shower off, it runs a short cleaning cycle about 15 minutes later to clear the last of the water, then stops. You don't need to press anything.

It's compatible with most electric and mixer showers and has been installed in over 150,000 UK homes, so it's a well-proven product.

Please note: Pump kits do require correct installation to work safely and effectively. We'd recommend using a qualified plumber or bathroom installer familiar with pumped drainage systems.
