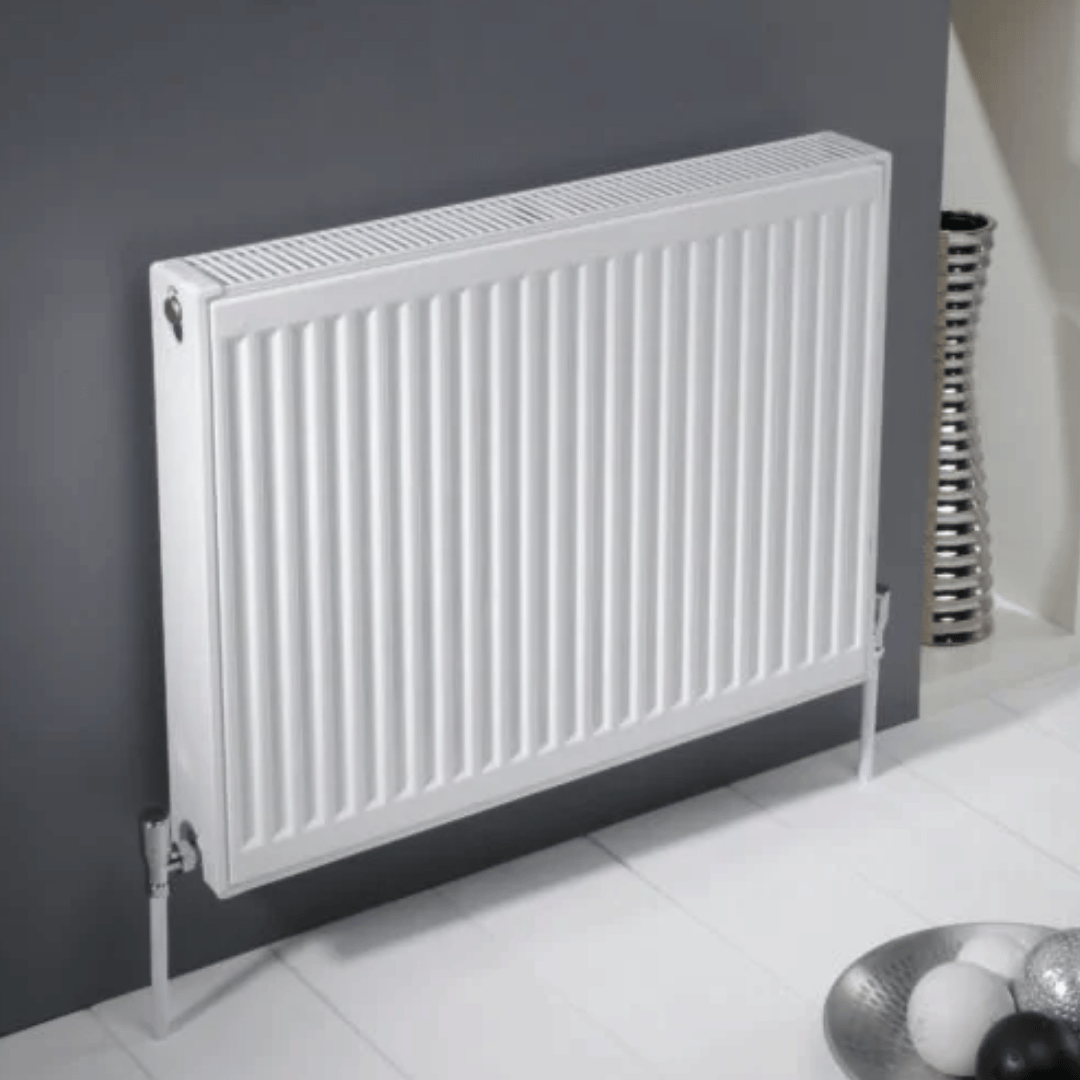

Kartell K-RAD Kompact Type 22 Double Panel Convector Radiator

The Type 22 is a cost-effective panel radiator built around state-of-the-art heating technology and excellent thermal efficiency.

Also known as a K2, Double Panel or Double Convector, the Type 22 configuration features front and back panels combined with a double set of convector fins for maximised heat output — making it well suited to both new installations and retrofits into existing central heating systems.

The classic corrugated front design is complemented by factory-fitted top grilles and side panels for a traditional compact appearance, while the RAL 9016 Traffic White finish gives a clean, universal look that suits most interiors.

Every radiator is finished to EN442 output standards, manufactured under BS EN ISO 9001, and backed by a 10-year Guarantee against faulty manufacture.

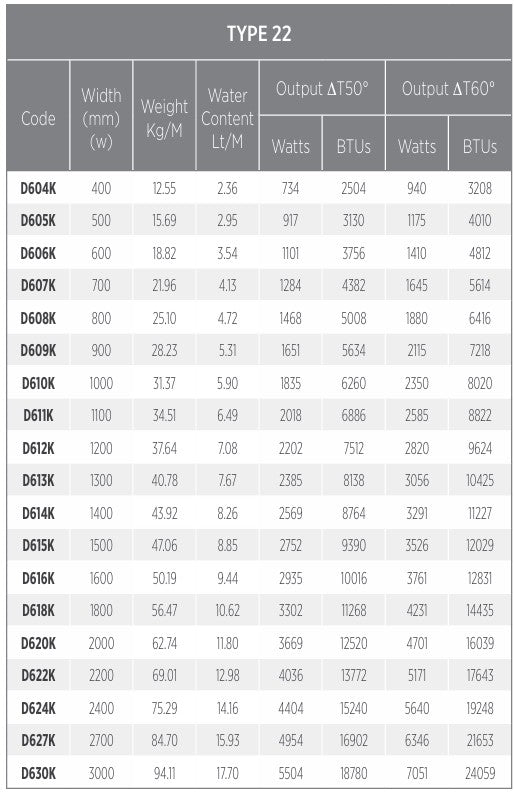

Heating Outputs

See images

Key Features

• Type 22 Double Convector (K2) configuration — front and back panels with a double set of convector fins for high heat output relative to footprint

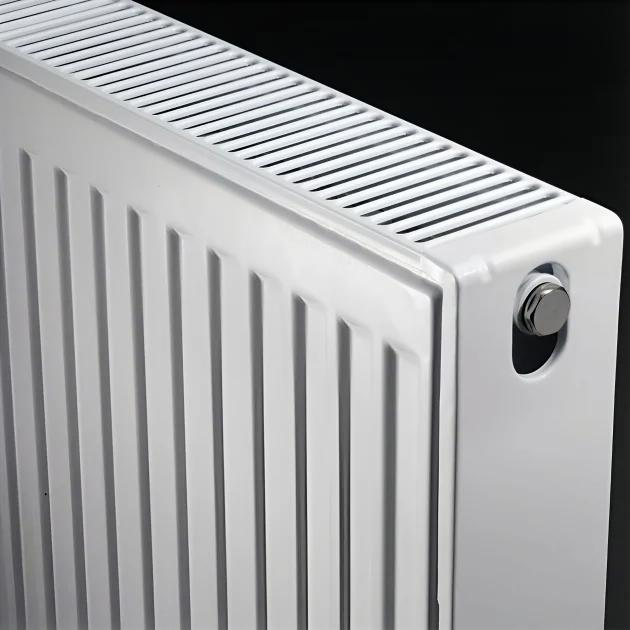

• Classic corrugated front panel design with a traditional compact aesthetic
• RAL 9016 Traffic White finish — clean, high-quality paintwork compatible with the majority of interiors
• Rated to 10 bar operating pressure and 120°C — compatible with most UK residential and light commercial central heating systems
• L-shaped wall brackets included, offering a choice of two installation depths (82.5mm or 97.5mm wall to pipe centres)
• Full installation package supplied — brackets, bolts, air vents and plugs included
• Robust transit packaging — plastic corner protectors, bubble wrap and polythene protection to prevent damage
• 10-year No Quibble Guarantee against faulty manufacture
• Radiator valves sold separately — a range of compatible styles available as optional additions
