M11 Digi Pump - Component Part

Product Overview

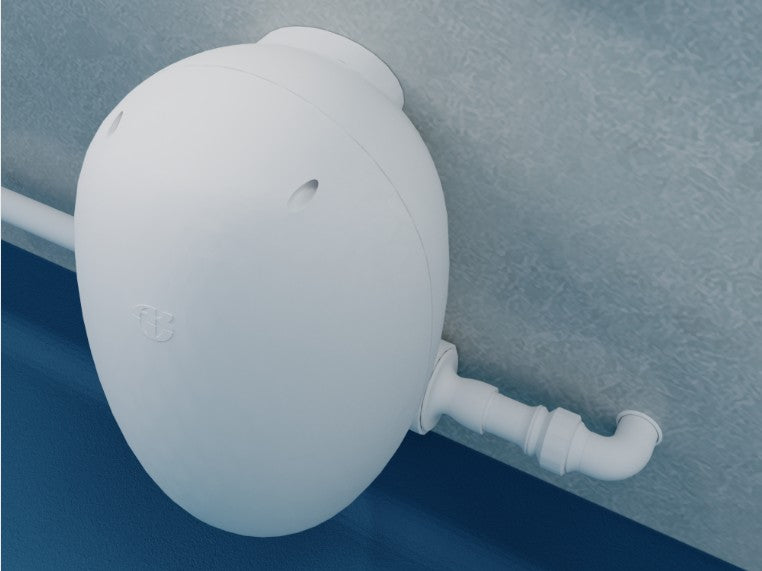

The AKW M11 DigiPump is a mains-powered shower waste pump designed for use where gravity drainage is not achievable. With a maximum pumping capacity of 11 litres per minute, it is matched specifically to the flow rates of electric showers, making it the correct choice for electric-only shower installations. It responds automatically to the shower being operated via an internal or external flow sensor, and its adjustable delay and run-on time settings allow the pump to be calibrated to the specific installation — reducing unnecessary noise and ensuring efficient drainage. Compatible with a wide range of electric shower brands including AKW, Mira, and Triton, and rated IP45 for safe installation in Zones 1 and 2.

Benefits

Calibrated for Electric Showers — Correct Flow Matching from the Start: With an 11 litres per min maximum capacity, the M11 is engineered to match electric shower output rather than overspec for mixer flows. This means the pump operates efficiently and quietly without the energy waste of an oversized unit.

Adjustable Delay and Run-On Settings — Installation-Specific Quiet Operation: The ability to adjust delay and run-on times means the pump can be tuned to the drainage behaviour of each individual installation. This eliminates unnecessary pump cycling and reduces noise during and after showering.

IP45 Rated, Zone 1 and 2 Approved — No Compromise on Safety: The IP45 rating confirms the M11 is approved for installation directly within the showering area. Two non-return valves prevent backflow through the pump, and the reversible pump head — featuring four valves with a flap valve and bowl design — allows inlet pipework to be run from either left or right to suit the install.

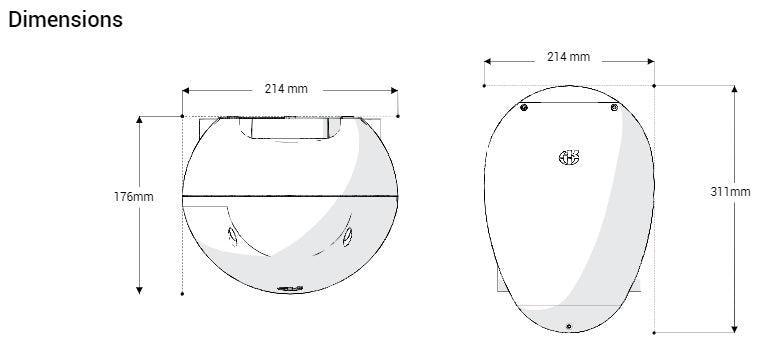

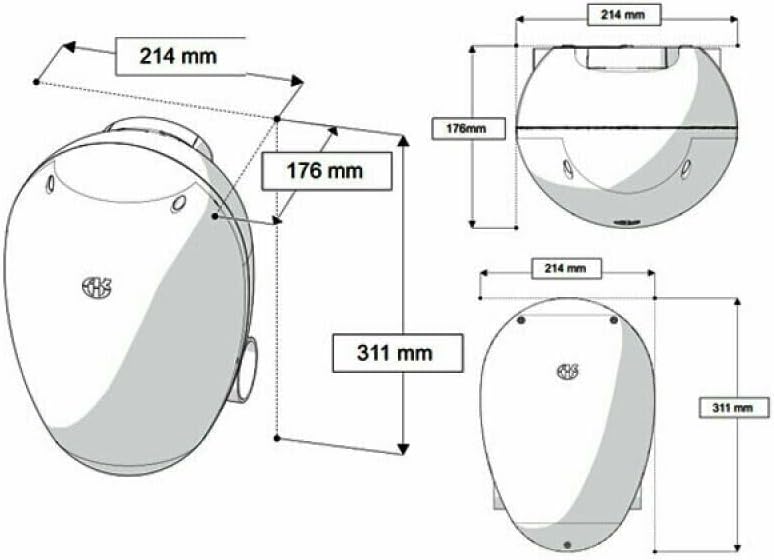

Technical Specifications

In the Box

• 1 x AKW M11 DigiPump unit (pump only)

Note: Waste kits are available separately. Kit combinations including compatible wastes are available under product codes 25471–25476.

FAQs

Which showers is the M11 compatible with? The M11 is designed for electric showers and is compatible with a wide range of brands including AKW, Mira, Triton and others. A hard-wired connection can be made to the flow sensor of an AKW iTherm electric shower and many other brands. For a wireless connection to AKW SmartCare Plus and SmartCare Lever electric showers, the AKW Wireless Pump Module is required and available separately.

Can I install the M11 directly in the shower area? Yes. The M11 carries an IP45 rating, confirming it is approved for installation in Zones 1 and 2 of a shower room. The reversible pump head allows inlet pipework to enter from either the left or right side, giving flexibility in confined or awkward spaces.

How do I reduce pump noise after installation? The M11 features adjustable delay and run-on time settings. By calibrating these to the specific drainage behaviour of the installation, unnecessary pump run time is eliminated, keeping operation as quiet as possible. AKW also offers a wall-mounted Auxiliary Switch (25488) to manage any additional drainage required when the shower is not running, such as during cleaning.

Warranty

The AKW M11 DigiPump carries a 7-year warranty.
