AKW Tuff Form Wet Room Former + Low Height Dry Waste for Tiled Floor

by AKW
SKU 21000-5
  • Tuff Form Wetroom Floor Former
  • Low Height Dry Waste with TF Tiled Floor Adaptor
  • Waste 40mm pipe connecting kit

Features and Benefits

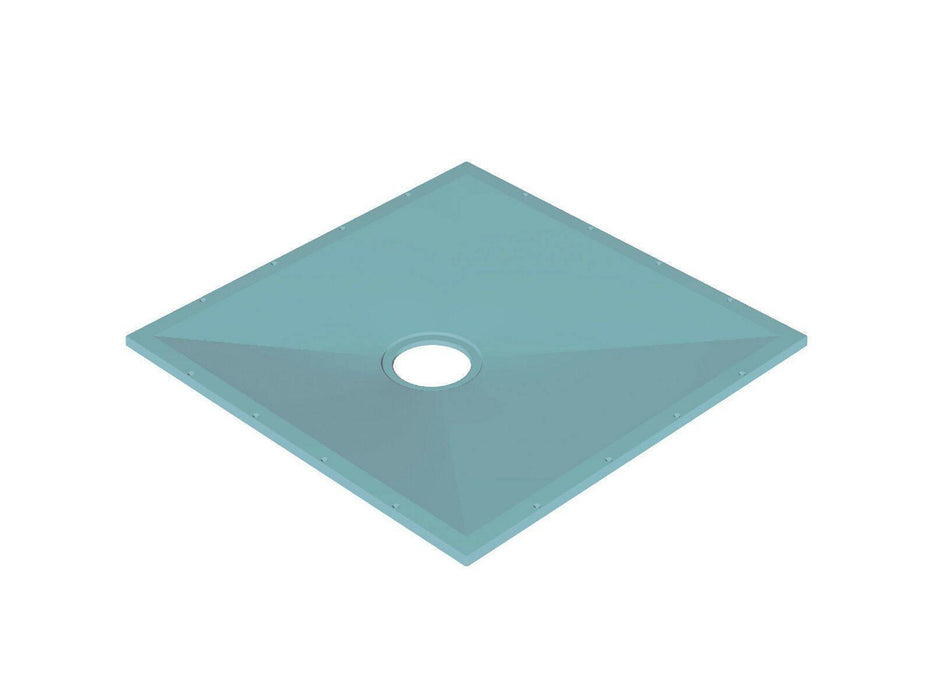

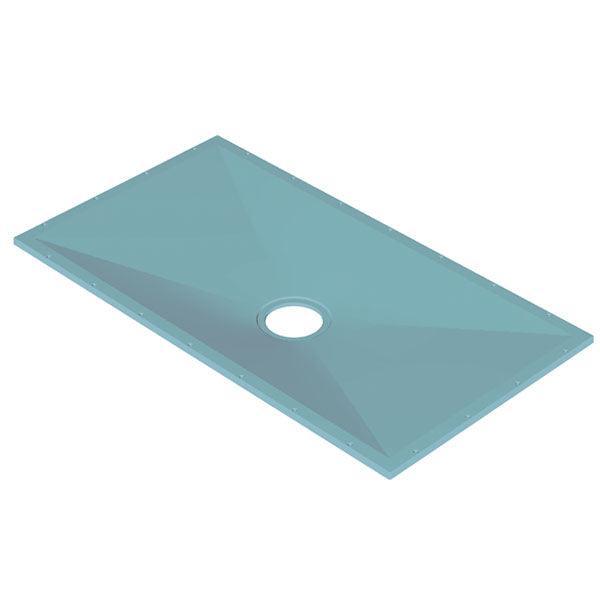

Tuff Form wet floor former:

  • Easy to install
  • 22mm depth of tray
  • Stylish, modern designs to give you attractive yet comfortable surroundings
  • Superior strength and rigidity, ideal for fitting under the bath in multi-tenant dwellings
  • Offset waste position to avoid joists pipework
  • Postion of waste is 350mm from left and 450mm down
  • Maximum weight capacity 60 Stone
  • Tuff Form® is the first product in its market sector to have a carbon footprint assessed to the PAS 2050 specification and has undergone verification by the Carbon Trust
  • Tuff Form® has achieved a European Fire Safety Rating of CFI-s2
  • Tuff Form® will not warp or deform by temperatures reached in a normal bathroom situation (and has been tested to 100°C)
  • The waffle underside of Tuff Form® makes it easier to settle into a screeded installation than a smooth underside, which can slide around during installation
  • Tuff Form® is designed to provide a ‘Bathroom for Life’
  • In the event of needing to recycle a Tuff Form®, it is 100% recyclable at any local plant
  • A recycled Tuff Form® creates a Grade 1 material which can be used in ANY glass reinforced products
  • Hundreds of thousands of Tuff Forms® have been installed across the world
  • Tuff Form® is widely used in the US and has been tested to ANSI Z124.1.2-2005
  • Formed from compressed GRP for exceptional strength and stability (Tuff Form® former)
  • Due to the compressed GRP the former can trimmed by 150mm of the waste without loosing strength integrity
  • Suitable for both wooden and solid floor installations
  • The ribbed design on the underside eliminates slippage or float during installations
  • Tuff Form depth is 22mm depth
  • Pre-formed fixing holes

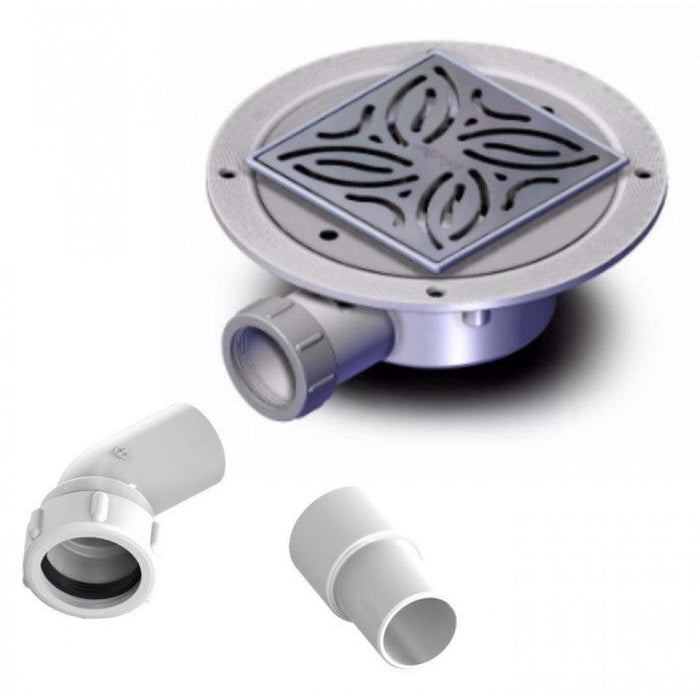

Waste and Adaptor:

  • Shallow 53mm depth. Useful for solid floors or shallow joists.
  • Trap will not dry out with sporadic use
  • Very compact
  • Good seals and location
  • Non return valve preventing bad odour backflow
  • Universal pipe fitment
  • Suitable for push fit pipe (with included adaptor)
  • Suitable for solvent weld pipe (with included adaptor)
  • Top access for easy cleaning
  • High flow rate (27 l/min with 15mm head and 1m of pipe)
  • Meets the performance requirements of British standards, BS EN 274 Part 2:2002
