Features
- Multiple waste positions
- Wide selection of waste options
- Suitable for both wooden and concrete floor

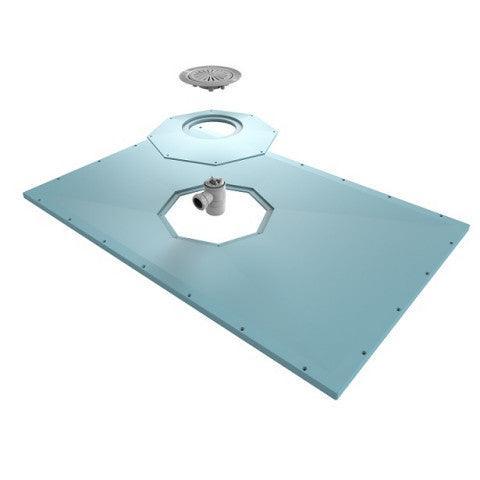

- Easily trimmable within 150mm from the octagonal plate
- No need for under boarding
- Pre-formed fixing holes
- User friendly step-by-step installation guide
- Suitable for use with underfloor heating
- Ribbed underside structure
- Durably supported for up to 60 stones on timber joists
- Level-access with large size options
- High strength GRP
- Well-engineered 1:16 gradient
Benefits
- Suitable for all UK joist patterns, the adjustable waste positions avoid all obstructing joists
- No water pooling in the shower area thanks to the octagonal plate design that provides a continual fall all the way to the waste
- Ability to remove octagonal plate makes for quick and easy installation of pipework
- Waste installation requires no tedious screw hole drilling
- Quick and easy installation
- Ribbed underside eliminates slippage or float during installation
- Versatile applications
- Peace of mind for long term use
- Designed with a variety of end-users in mind, able to support chair users and carers
- A solid support by the cutting-edge SMC-GRP (Sheet moulding Compound -Glass Reinforced Plastic) composite technology, enabling easy transportation and installation
Product Specification
- Thickness: 22mm to suit the 18mm UK timber floor board + 4mm plywood, no extra adjustment needed for installation
- Strength: 60 stone (381kg) on joists/ Unlimited on concrete
- Manufacturing technique: Compression moulding
- Recyclability: Recyclable

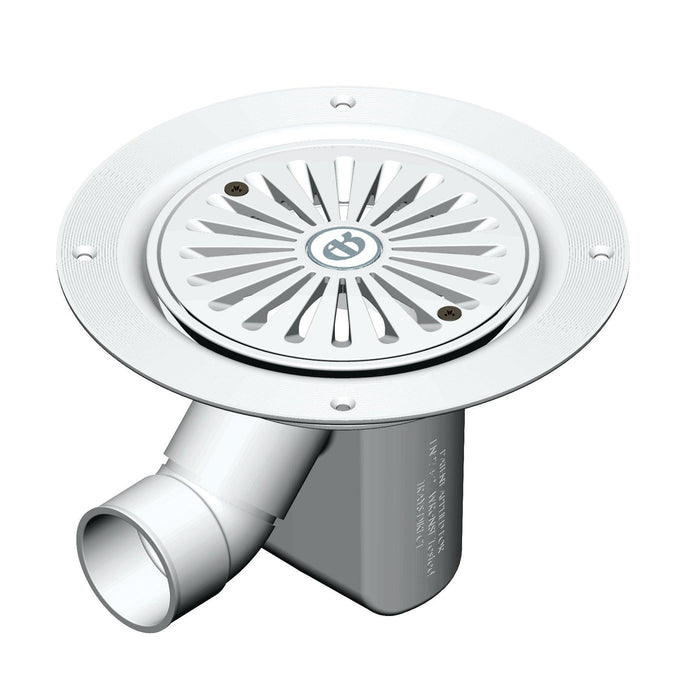

TF75 Waste
- 75mm water seal trapped waste for wet floors - Provides backflow prevention
- Adjustable elbow for waste pipe exit - Elbow can be easily adjusted to suit existing pipework
- 125mm depth below tray - Designed for Tuff Form wet floor formers and screeded floor installations in a breachable floor
- Opens for easy cleaning and rodding - Ensuring easy maintenance
- Low maintenance & reliable operation - Provides peace of mind
- Opens for easy cleaning - Top access for easy cleaning
- For vinyl flooring only
- Universal solvent socket joint - Accommodates vertical or horizontal outlets
- Lifetime Warranty (please refer to our terms and conditions) - Provides peace of mind
