- Suitable for all UK joist patterns, the adjustable waste positions avoid all obstructing joists
- No water pooling in the shower area thanks to the octagonal plate design that provides a continual fall all the way to the waste

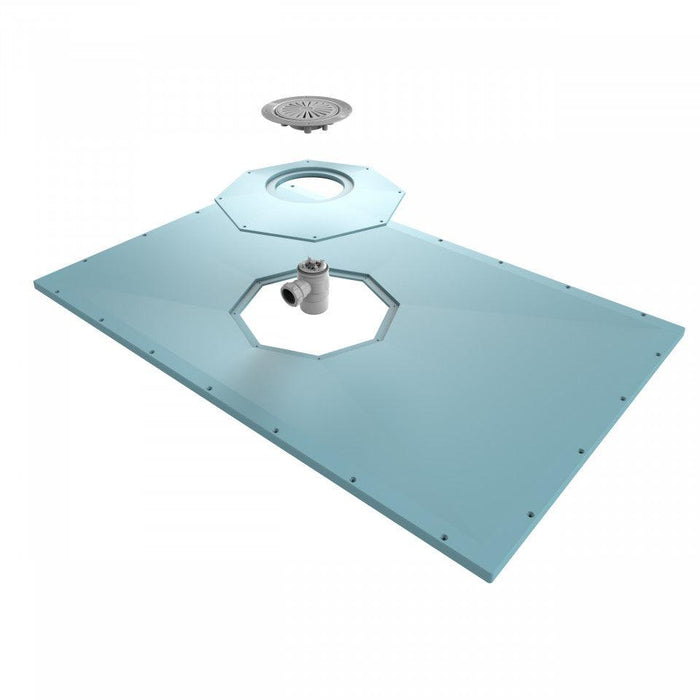

- Ability to remove octagonal plate makes for quick and easy installation of pipework
- Waste installation requires no tedious screw hole drilling
- Quick and easy installation
- Ribbed underside eliminates slippage or float during installation
- Versatile applications
- Peace of mind for long term use
- Designed with a variety of end-users in mind, able to support chair users and carers
- A solid support by the cutting-edge SMC-GRP (Sheet moulding Compound -Glass Reinforced Plastic) composite technology, enabling easy transportation and installation
Features
- Multiple waste position NEW!!
- Wide selection of waste options
- Suitable for both wooden and concrete floor
- Easily trimmable within 150mm from the octagonal plate
- No need for under boarding
- Pre-formed fixing holes
- User friendly step-by-step installation guide
- Suitable for use with underfloor heating
- Ribbed underside structure
- Durably supported for up to 60 stones on timber joists
- Level-access with large size options
- High strength GRP
- Well-engineered 1:16 gradient
Product Specification
- Thickness: 22mm to suit the 18mm UK timber floor board + 4mm plywood, no extra adjustment needed for installation
- Strength: 60 stone (381kg) on joists/ Unlimited on concrete
- Manufacturing technique: Compression moulding
- Recyclability: Recyclable
Approval: BS EN 14527
19mm Standard Gravity Waste (GW19)
- Good seals and location
- Built in filter
- 50mm threaded waste fitting
- Depth below tray 93mm
- Overall depth 113mm
- Also available in 50mm option
- Compatible with Braddan, Multi Spec and Tuff Form former with adaptor
- Guaranteed for Life*
*Exclusions apply
SKU: 25125
