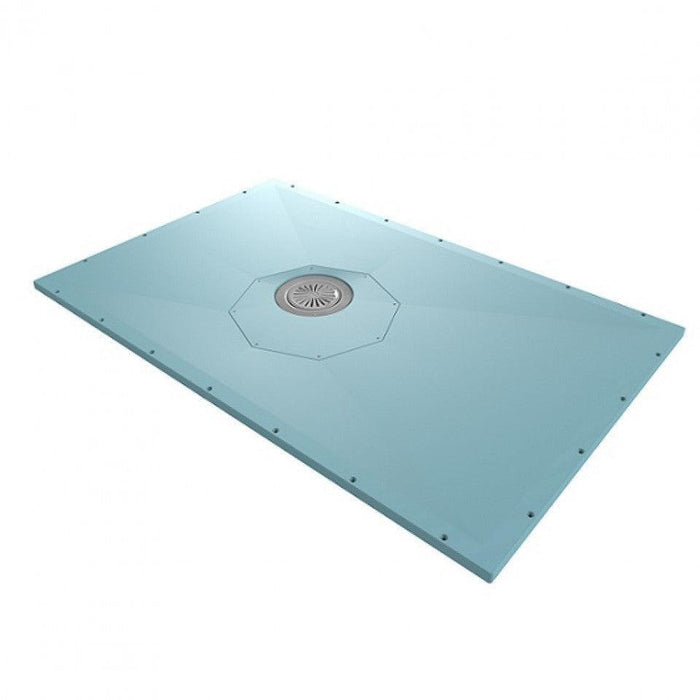

AKW Tuff Form8 With TF75 Stainless Steel Waste

by AKW
£275.77
SKU 21130-3
The Tuff Form8 has a proven-effective laminated structure that offers a superior strength for shower support and 15 waste fit positions for nearly all wet room configurations.

Benefits

  • Suitable for all UK joist patterns, the adjustable waste positions avoid all obstructing joists
  • No water pooling in the shower area thanks to the octagonal plate design that provides a continual fall all the way to the waste
  • Ability to remove octagonal plate makes for quick and easy installation of pipework
  • Waste installation requires no tedious screw hole drilling
  • Quick and easy installation
  • Ribbed underside eliminates slippage or float during installation
  • Versatile applications
  • Peace of mind for long term use
  • Designed with a variety of end-users in mind, able to support chair users and carers
  • A solid support by the cutting-edge SMC-GRP (Sheet moulding Compound -Glass Reinforced Plastic) composite technology, enabling easy transportation and installation

Features

  • Multiple waste position NEW!!
  • Wide selection of waste options
  • Suitable for both wooden and concrete floor
  • Easily trimmable within 150mm from the octagonal plate
  • No need for under boarding
  • Pre-formed fixing holes
  • User friendly step-by-step installation guide
  • Suitable for use with underfloor heating
  • Ribbed underside structure
  • Durably supported for up to 60 stones on timber joists
  • Level-access with large size options
  • High strength GRP
  • Well-engineered 1:16 gradient
Product Specification
  • Thickness: 22mm to suit the 18mm UK timber floor board + 4mm plywood, no extra adjustment needed for installation
  • Strength: 60 stone (381kg) on joists/ Unlimited on concrete
  • Manufacturing technique: Compression moulding
  • Recyclability: Recyclable

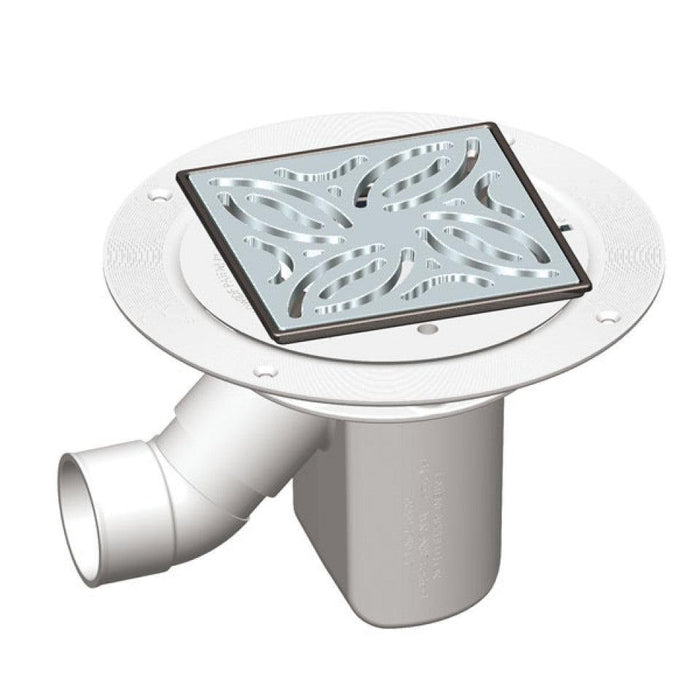

Stainless Steel TF75 Gravity Waste FOR TILING ONLY

Can be specified with any Tuff Form® wet floor former and for any screeded floor installation in a breachable floor.

  • For use with Tuff Form former when tiling
  • LB00101 - code
  • Opens for easy cleaning and rodding
  • 125mm deep below mounting surface
  • Overall depth 132mm
  • 75mm water trap depth
  • Adjustable elbow for waste pipe exit
  • Stainless steel plate dimensions - 120 x 120mm
  • Stainless steel plate height is adjustable to max of 18mm with adhesive
  • Guaranteed for Life*

*Exclusions apply
